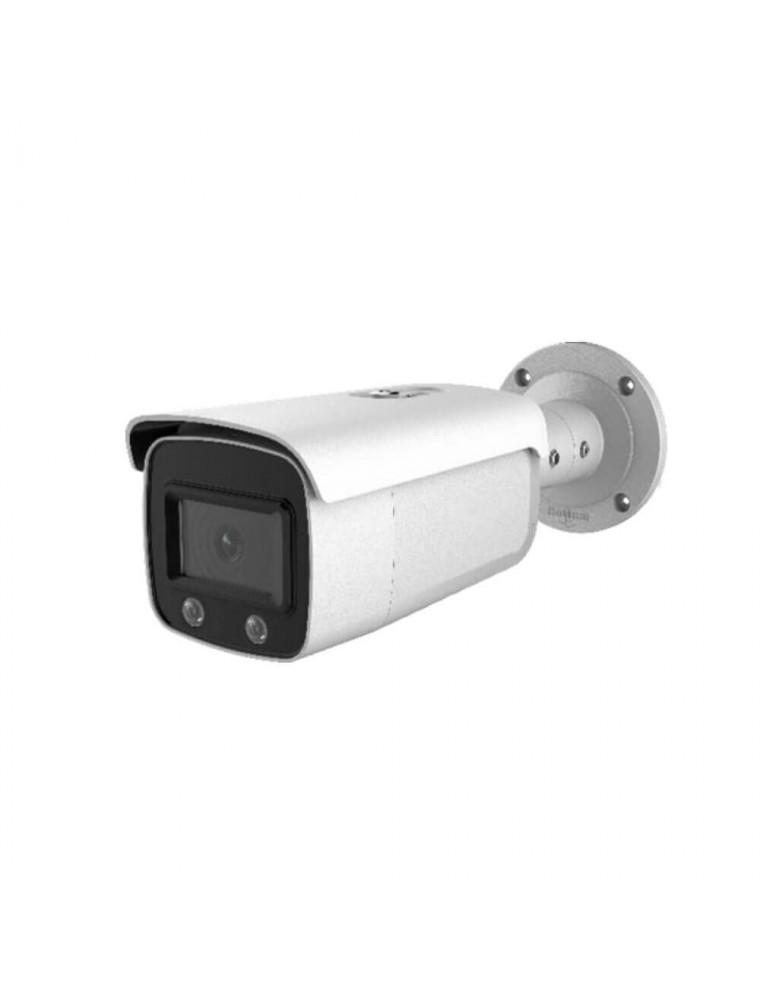

4 MP ColorVu Fixed Bullet Network Camera

High quality imaging with 4 MP resolution

24/7 full color imaging

Efficient H.265+ compression technology

Clear imaging against strong back light due to 120 dB true WDR technology

Water and dust resistant (IP67)

Robust structure design with full metal materials

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Min. Illumination0.0014 @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens
• FocusFixed
• Lens Type2.8/4/6 mm
• FOV2.8 mm, horizontal FOV: 109°, vertical FOV: 55°, diagonal FOV: 138°; 4 mm, horizontal FOV: 94°, vertical FOV:48°, diagonal FOV: 115°; 6 mm, horizontal FOV: 57°, vertical FOV: 31°, diagonal FOV:67°
• ApertureF1.0
• Lens MountM16

• Illuminator
• White Light RangeWarm white LEDs (3000K), up to 30m

• Video
• Max. Resolution2688 × 1520
• Main Stream50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288); 60Hz: 30fps(1280 × 720, 640 × 360, 352 × 240)
• Video CompressionMain stream: H.265+/H.265/H.264+//H.264, sub-stream: H.265/H.264/MJPEG, third stream: H.265/H.264
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)Support 1 fixed region for main stream and sub stream separately

• Network
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• User/HostUp to 32 users, 3 levels: Administrator, Operator and User
• Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
• Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11; Plug-in free live view:Chrome 45.0+, Firefox 52.0+
• Alarm TriggerMotion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

• Image
• Day/Night SwitchDay/Night
• DNR3D DNR
• Image EnhancementBLC/3D DNR/HLC
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

• Interface
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

• Smart Feature-Set
• Smart EventLine crossing detection, intrusion detection, object removal detection, unattended baggage detection
• Face DetectionYes
• Exception DetectionScene change detection
