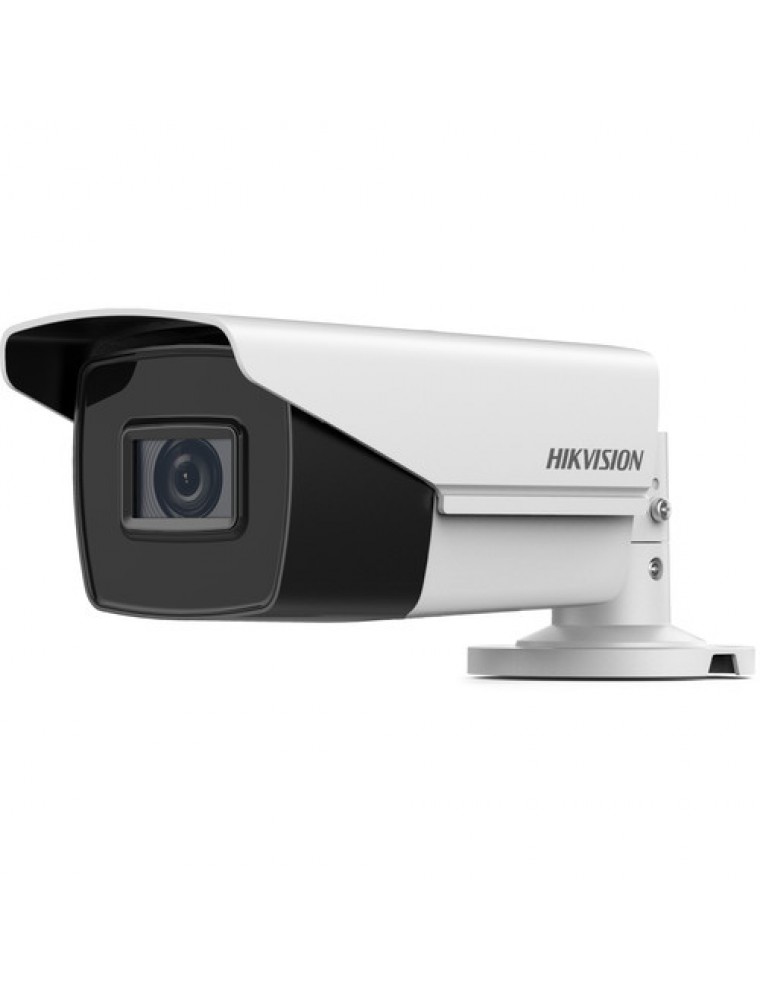

4K Motorized Varifocal Bullet Camera

8 MP bullet camera

Lens focuses automatically when zooming in or out

EXIR 2.0: advanced infrared technology with 80 m IR distance

Water and dust resistant (IP67)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS);

• Camera
• Lens2.7 mm to 13.5 mm motorized vari-focal lens
• Horizontal Field Of View108.1° to 45.6°
• Lens MountΦ14
• Day & NightIR cut filter
• SynchronizationInternal synchronization
• Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
• Image Sensor8.29 megapixel progressive scan CMOS
• Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N
• Resolution3840 (H) × 2160 (V)
• Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/12.5s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s

• Menu
• AGCYes
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceAuto/Manual
• Backlight CompensationYes
• DWDR (Digital Wide Dynamic Range)Yes
• FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR, HLC

• Interface
• Video Output1 HD analog output
• Switch ButtonTVI/AHD/CVI/CVBS

• General
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply9 VDC to 15 VDC -A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC *You are recommended to use one power adapter to supply the power for one camera.
• Power ConsumptionMax. 8.6 W -A: Max. 10.8 W
• Protection LevelIP67
• MaterialFront cover: Metal Main body: Plastic Bracket: Metal
• IR RangeUp to 80 m
• CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
• Dimensions84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
• WeightApprox. 695 g (1.53 lb.)
