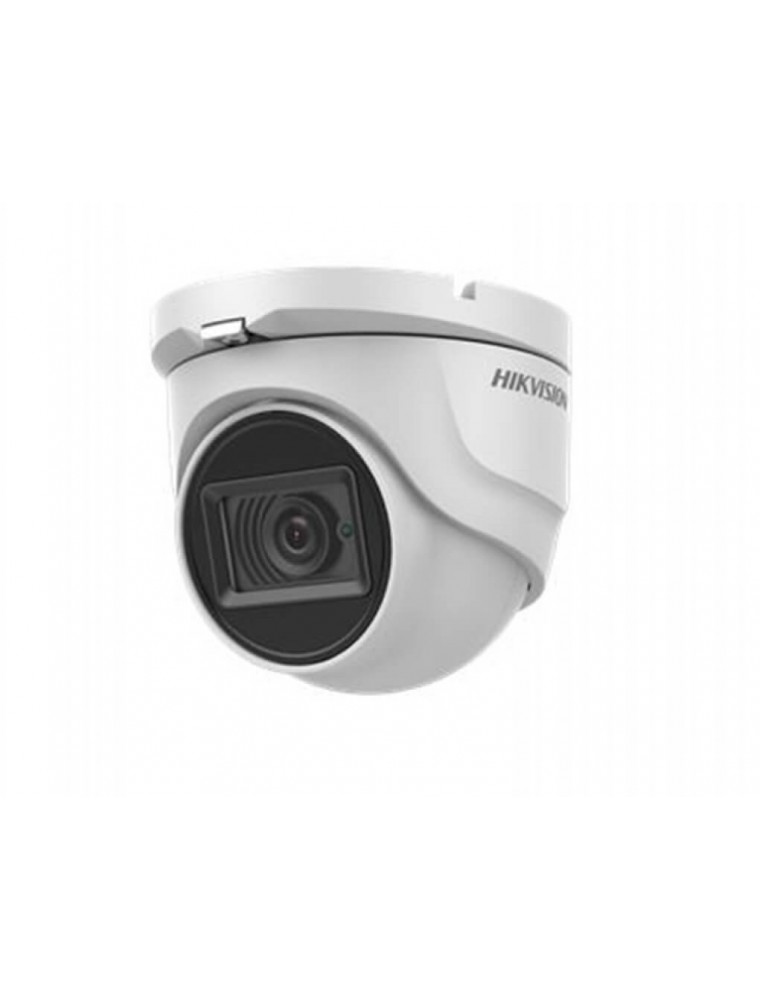

4K Fixed Turret Camera

8 MP turret camera

EXIR 2.0: advanced infrared technology with 30 m IR distance

Water and dust resistant (IP67)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

• Camera
• Lens2.8 mm, 3.6 mm, 6 mm fixed lens
• Horizontal Field Of View102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
• Lens MountM16
• Day & NightIR cut filter
• SynchronizationInternal synchronization
• Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
• Image Sensor8.29 megapixel progressive scan CMOS
• Signal SystemPAL/NTSC
• Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps,CVI: 8MP@12.5fps, 8MP@15fps,AHD: 8M@12.5fps, 8M@15fps,CVBS: 960H P/N
• Resolution3840 (H) × 2160 (V)
• Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s

• Menu
• AGCYes
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceAuto/Manual
• Backlight CompensationYes
• DWDR (Digital Wide Dynamic Range)105 dB
• LanguageEnglish
• FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR, HLC

• Interface
• Video Output1 HD analog output
• Switch ButtonTVI/AHD/CVI/CVBS

• General
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply12 VDC ±25%,*You are recommended to use one power adapter to supply the power for one camera.
• Power ConsumptionMax. 5.3 W
• Protection LevelIP67
• MaterialMetal
• IR RangeUp to 30 m
• CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
• Dimensions90 mm × 79.37 mm (3.54" × 3.12" )
• WeightApprox. 310 g (0.68 lb.)
