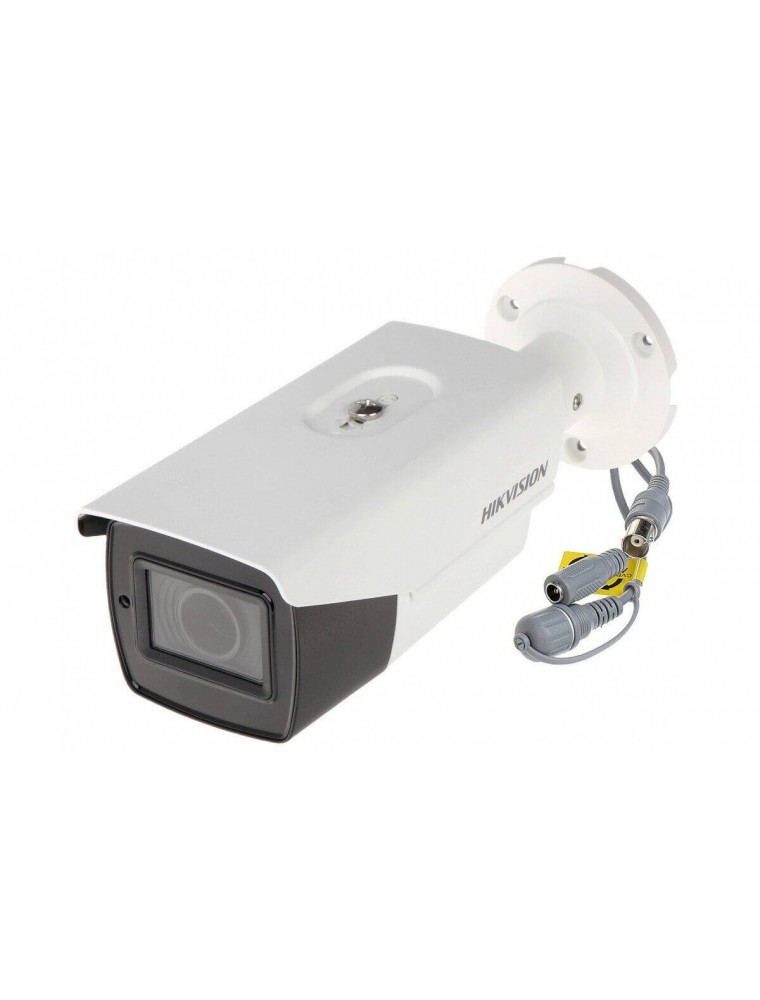

5 MP Motorized Varifocal Bullet Camera

5 MP bullet camera

2.7-13.5 mm motorized vari-focal lens

EXIR 2.0: advanced infrared technology with 40 m IR distance

Water and dust resistant (IP67)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS);

• Camera
• Lens2.7 mm to 13.5 mm motorized vari-focal lens
• Horizontal Field Of View95.7° to 29.1°
• Lens MountΦ 14
• Day & NightIR cut filter
• SynchronizationInternal synchronization
• Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
• Effective Pixels2560 (H) × 1944 (V)
• Image Sensor5 MP CMOS image sensor
• Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
• Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

• Menu
• AGCSupport
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceATW/MWB
• Backlight CompensationSupport
• DWDR (Digital Wide Dynamic Range)Support
• FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR

• Interface
• Video Output1 HD analog output
• Switch ButtonTVI/AHD/CVI/CVBS

• General
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply12 VDC ±15%, 24 VAC ±15%
• Power ConsumptionDS-2CE16H0T-IT3ZF: Max. 6.3 W DS-2CE16H0T-AIT3ZF: Max. 8.9 W
• Protection LevelIP67
• MaterialFront cover: Metal Main body: Plastic
• IR RangeUp to 40 m
• CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
• Dimensions84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
• WeightDS-2CE16H0T-IT3ZF: Approx. 665 g (1.47 lb.) DS-2CE16H0T-AIT3ZF: Approx. 705 g (1.55 lb.)
