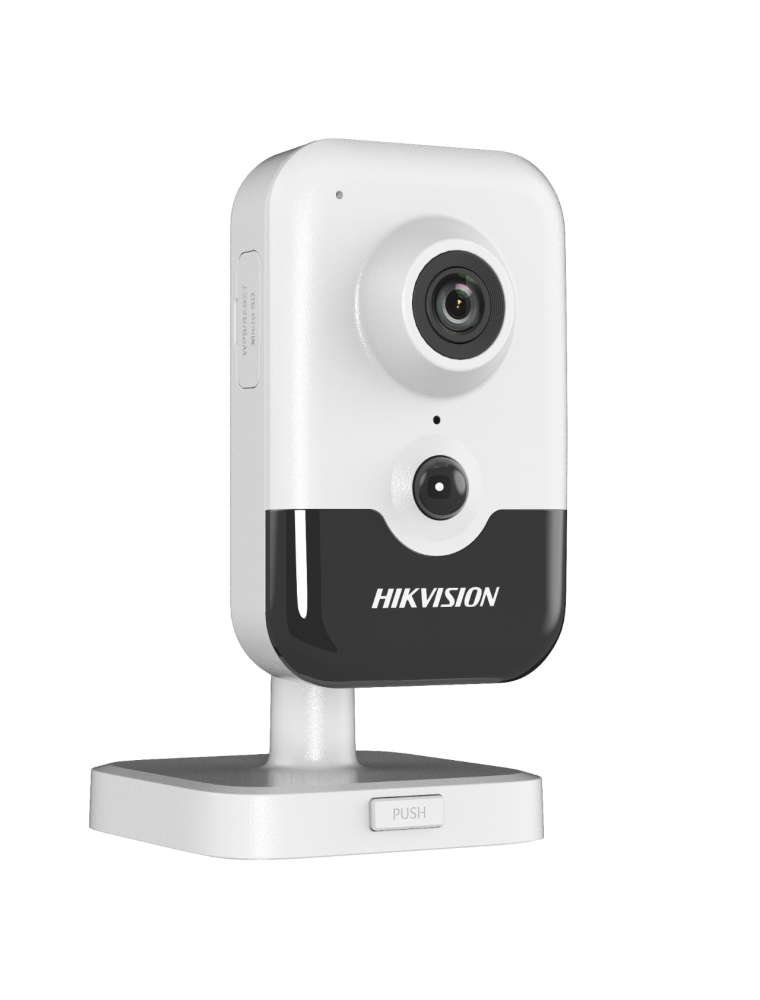

4 MP AcuSense Built-in Mic Fixed Cube Network Camera

High quality imaging with 4 MP resolution

Clear imaging against strong backlight due to 120 dB WDR technology

Efficient H.265+ compression technology

Focus on human and vehicle classification based on deep learning

Provide real-time security via built-in two-way audio

Detect human body through passive infrared which is sensitive to body temperature (PIR)

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. Illumination

  2 mm: color: 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

  2.8 mm and 4 mm: color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

• Shutter Speed1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens
• Focal Length & FOV

  2 mm, horizontal FOV 128.4°, vertical FOV 75.4°, diagonal FOV 147.1°

  2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°

  4 mm, horizontal FOV 83.7°, vertical FOV 43°, diagonal FOV 100.3°

• Aperture

  2 mm: F2.0

  2.8 mm: F1.6

  4 mm: F1.6

• Lens MountM12

• DORI
• DORI

  2 mm: D: 45.5 m, O: 18.0 m, R: 9.1 m, I: 4.5 m

  2.8 mm: D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m

  4 mm: D: 79.4 m, O: 31.5 m, R: 15.9 m, I: 7.9 m

• Illuminator
• IR RangeUp to 10 m
• Wavelength850 nm
• Smart Supplement LightYes

• Video
• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)

  Yes

• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)

• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Wide Dynamic Range (WDR)120 dB
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Transducer
• PIR AngleHorizontal: 90°, vertical: 80°
• PIR RangeUp to 8 m

• Interface
• Built-In MicrophoneYes
• Built-In SpeakerPower: 1 W. Max. sound pressure level: 10 cm: 91 dB.
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event
• Basic EventMotion detection, video tampering alarm, exception
• LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning
• Face DetectionYes

• Deep Learning Function
• Perimeter Protection

  Line crossing, intrusion

  Support alarm triggering by specified target types (human and vehicle)

• General
• Power

  12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug

  PoE: (802.3af, Class 3, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W

• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, password reset via email, pixelounter
• Storage Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
• Camera MaterialPlastic
• Camera Dimension

  2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6\" × 1.1\")

  2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1 × 2.6\" × 1.3\") "

• Package Dimension150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
• Camera WeightApprox. 120 g (0.3 lb.)
• With Package WeightApprox. 430 g (0.9 lb.)

• Approval
• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 62368-1);

  CB (IEC 62368-1:2014+A11);

  CE-LVD (EN 62368-1:2014/A11:2017)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)
