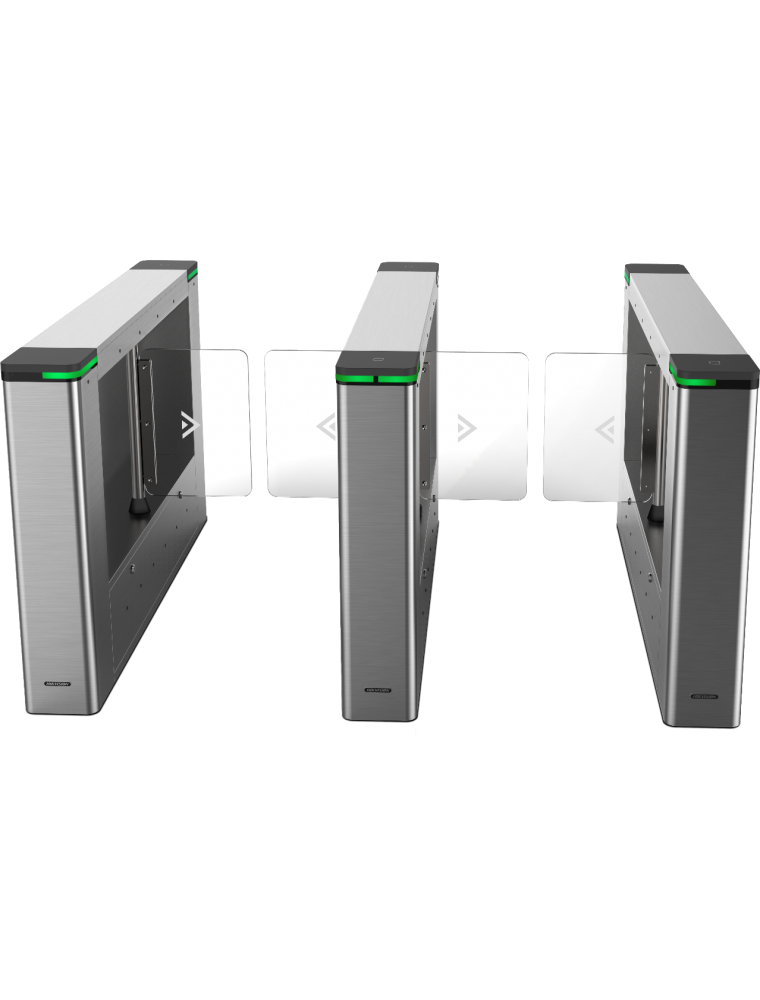

Value Swing Barriers

12 pairs of IR light detectors: Permissions validation and anti-tailgating

LED light indicates passing direction

Audible and visual nipping alarm: The barrier will stop working for a period of time when detecting obstruction when open/close barrier

Self-detection, Self-diagnostics, and automatic alarm

Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration

Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered.

Barrier is in free status when powering down

• System
• MCBF＞6 million times
• MotorServo motor

• Interface
• Network InterfaceTCP/IP
• RS-4854
• RS-2324
• Lock Control2
• Alarm Input2
• Alarm Output2

• Capacity
• Card Capacity60,000
• Event Capacity180,000

• General
• Throughput

  20 to 60 persons per minute

  The actual throughput is affected by the person passing rate and passing method.

• Power Supply Method100 to 240 VAC; 50 to 60 Hz
• IR Light Detectors12 pairs
• Lane Width550 mm to 1100 mm (21.65" to 43.31")
• Working Temperature-25 °C to 65 °C (-13 °F to 149 °F)
• Barrier MaterialStainless steel pipe; Acrylic glass
• Working Humidity10% to 95% (No Condensing)
• Dimensions

  Without packaging: 1500 mm × 200 mm × 960 mm (59.06" × 7.87\" × 37.80\")

  With packaging: 1610 mm × 300 mm × 1100 mm (63.39 × 11.81\" × 43.31\")"

• Pedestal MaterialSUS304 stainless steel
• Application EnvironmentIndoor and outdoor
• Protective LevelIP54 (proved by Hikvision laboratory)

• Without packaging: 56 kg (left and right)/71 kg (middle) (123 lb/157 lb)

  With packaging: 86 kg (left and right)/100 kg (middle) (190 lb/221 lb)

• ApprovalCE/FCC/CB/RoHS/REACH/WEEE

• Configuration
• Module SelectionYES
• Authentication ModeCard;Face;Fingerprint;QR code
• Card TypeEM;M1
• Wall Distance10mm
• Lane Width550,650,750,900,1100
• Recommended Width650
• Pedestal Width200mm
• Pedestal Length1500mm
• Barrier MaterialAcrylic glass,Stainless steel pipe
• BaseYES
• Base ModelDS-K3B601-BASE
• Remote Controller Type433Mhz;868Mhz
• Product TypeSwing barrier
