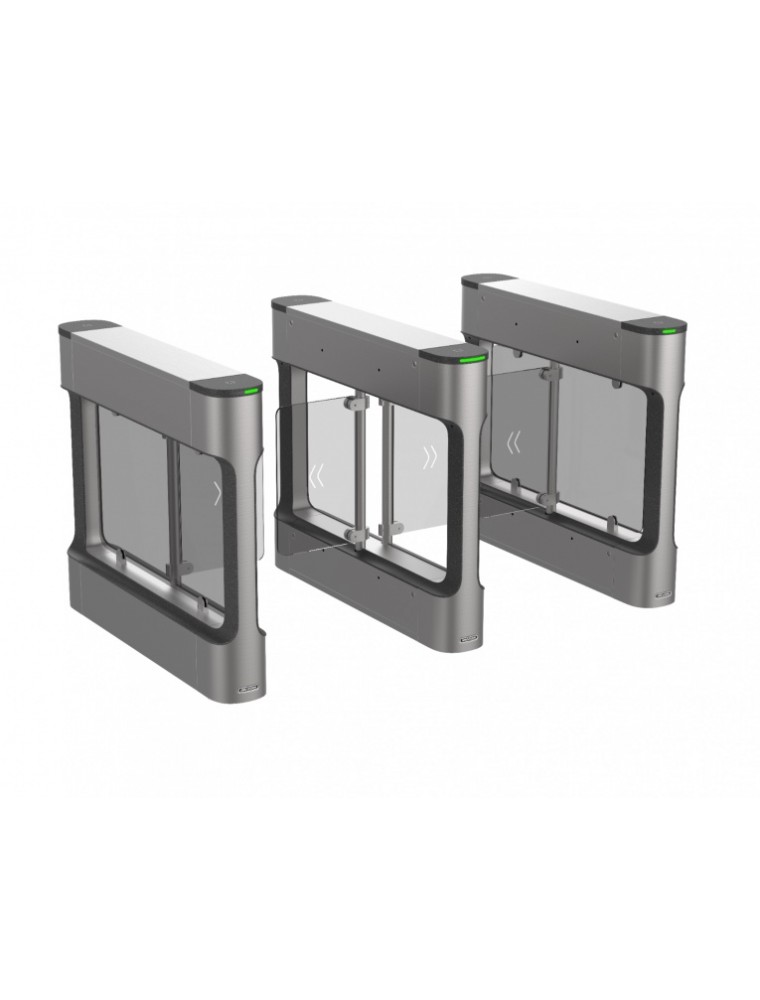

Value Swing Barriers

6 pairs of IR light detectors: Permissions validation and anti-tailgating

LED light indicates passing direction

Audible and visual nipping alarm: The barrier will stop working for a period of time when detecting obstruction when open/close barrier

Self-detection, Self-diagnostics, and automatic alarm

Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration

Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered.

Barrier will automatically open when powering down

• System
• MCBF＞3 million times
• MotorBrush motor

• Interface
• Network Interface1
• RS-4854
• RS-2326
• Lock Control2
• Alarm Input2
• Alarm Output2

• General
• Throughput

  20 to 60 persons per minute

  The actual throughput is affected by the person passing rate and passing method.

• Power Supply Method100 to 240 VAC; 50 to 60 Hz
• IR Light Detectors6 pairs
• Lane Width550 mm to 1100 mm
• Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
• Barrier MaterialStainless steel pipe; Acrylic glass
• Working Humidity10% to 95% (No Condensing)
• Dimensions

  Without packaging: 1200 mm × 200 mm × 1020 mm (47.2" × 7.9\" × 40.2\")

  With packaging: 1408 mm × 348 mm × 1156 mm (55.4 × 13.7\" × 45.5\")

• Pedestal MaterialSUS304 stainless steel
• Application EnvironmentIndoor and outdoor

• Net (Approximately): 38.3 kg (Left), 43.3 kg (Middle), 40.2 kg (Right)/84.5 lb (Left), 95.5 lb (Middle), 88.6 lb (Right)

  Rough (Approximately): 66.5 kg (Left), 71.5 kg (Middle), 68.4 kg (Right)/146.6 lb (Left), 157.7 lb (Middle), 150.8 lb (Right)

• Configuration
• Module SelectionNO
• Authentication ModeCard;Face;QR code;Fingerprint
• Card TypeEM;M1
• Wall Distance60mm
• Lane Width650,750,900,1100
• Recommended Width650
• Pedestal Width200mm
• Pedestal Length1200mm
• Barrier MaterialAcrylic glass,Stainless steel pipe
• BaseYES
• Base ModelDS-K3B411X-BASE
• Authentication ExclusionaryFingerprint;QR code
• Product TypeSwing barrier
• Remote Controller Type433Mhz;868Mhz
