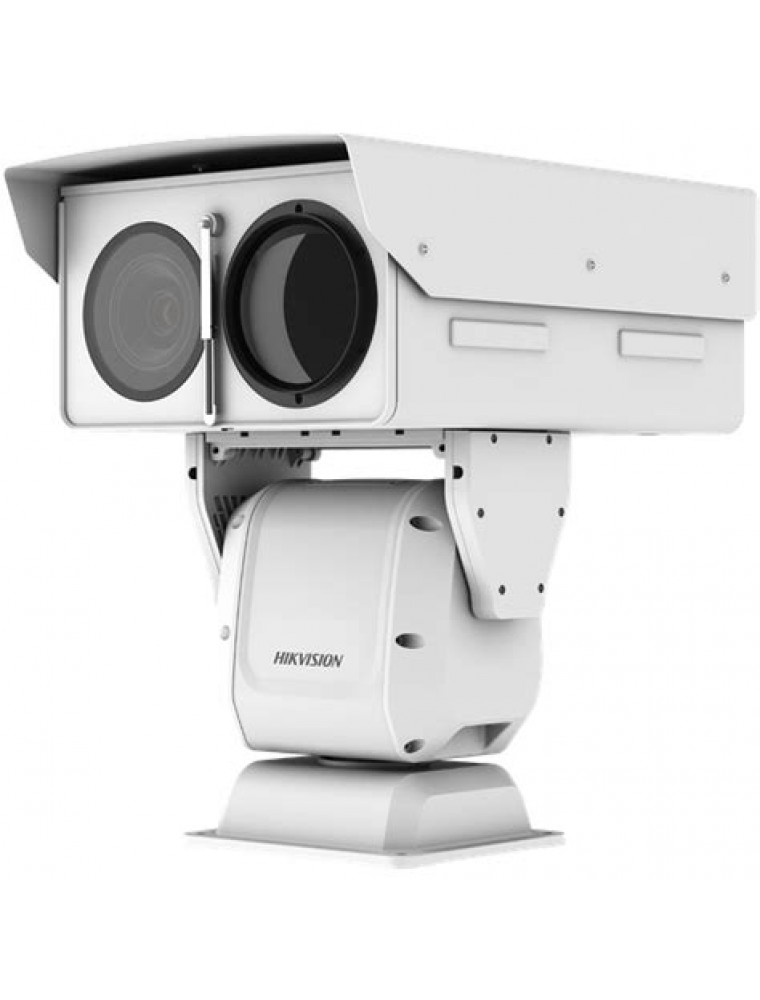

Thermal & Optical Bi-spectrum Network Stable PTZ Camera

Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance and exit

Temperature exception alarm for fire prevention

Fire detection algorithm, Smoke detection algorithm

640 × 512 (the resolution of output image is 1920 × 1080) resolution 17 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)

Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR

High quality detector with 10 years guarantee

Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking

Smart tracking linkage: thermal view and optical view

Thermal channel supports EIS, conflicted with intelligent function

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution640 × 512 (the resolution of output image is 1920 × 1080)
• Pixel Interval17 μm
• Response Waveband8 μm to 14 μm
• NETDLess than 35 mK (@25 °C,F#=1.0)
• Focal Length30 to 150 mm
• Focus ModeSemi-auto & Manual
• IFOV0.57 to 0.11 mrad
• ApertureF0.8 to F1.2
• Field Of View20.56° × 16.51° (H × V) to 4.15° × 3.32° (H × V)
• Min. Focusing Distance3m
• Digital Zoom×2, ×4, ×8

• Optical Module
• Image Sensor1/1.8" Progressive Scan CMOS
• Resolution2688 × 1520, 4 MP
• Min. IlluminationColor: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
• Field Of View60° × 35.8° (H × V) to 1.2° × 0.7° (H × V)
• Focal Length6.7-330 mm, 49x
• Aperture (Range)F1.5-F5.3
• Focus ModeSemi-auto/Manual
• Shutter Speed1s to 1/30,000s
• WDR120 dB
• Digital Zoom×2, ×4, ×8, ×16
• Optical DefogYes

• Image Effect
• Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
• Target ColorationSupported in white hot and black hot mode

• PTZ
• Movement RangePan: 360° Continuous Rotate; Tilt: From -45° to + 45° (auto flip)
• Pan SpeedConfigurable, From 0.01°/s to 40°/s, Preset Speed: 240°/s
• Tilt SpeedConfigurable, From 0.01°/s to 20°/s, Preset Speed: 200°/s
• Proportional ZoomYes
• Presets300 in total, 273 are configurable.
• Patrol Scan8; Up to 32 Presets Per Patrol
• Pattern Scan4; More Than 10 Minutes Per Pattern
• Power Off MemoryYes
• ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PT StatusTurn On/Turn Off
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

• Smart Function
• VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
• Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
• Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
• Temperature Accuracy± 8 °C (±14.4 °F)
• Fire DetectionDynamic fire point detection, up to 10 fire points detectable.

• Video And Audio
• Main Stream

  Optical channel

  50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)

  Thermal channel

  50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 384 × 288)

• Sub-Stream

  Optical channel

  50 Hz:25 fps (704 × 576, 352 × 288)

  60 Hz: 30 fps (704 × 576, 352 × 288)

  Thermal channel

  50 fps (704 × 576, 640 × 480, 384 × 288)

• Video Compression

  Main stream: H.265+/H.265/H.264+/ H.264

  Sub-stream: H.265/H.264/MJPEG

• Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
• Simultaneous Live ViewUp to 20 channels
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Live view (plug-in allowed) : Internet Explorer 11

  Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

  Local service : Chrome 57.0+, Firefox 52.0 +

• Interface
• Alarm Input7-ch inputs (0-5 VDC)
• Alarm Output2-ch relay outputs, alarm response actions configurable
• Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
• Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio OutputLinear Level; Impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface

• Analog Video Output1.0 V [p-p]/75 Ω, BNC for thermal channel

• General
• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• Power Supply48 VDC ± 20%, two-core terminal block
• Power Consumption48 VDC, 5 A, max. 220 W
• Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
• WiperYes
• Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension649.2 mm × 438 mm × 668.3 mm (25.6 " × 17.2 " × 26.3 ")
• Approx. 60kg (132.3 lb)
