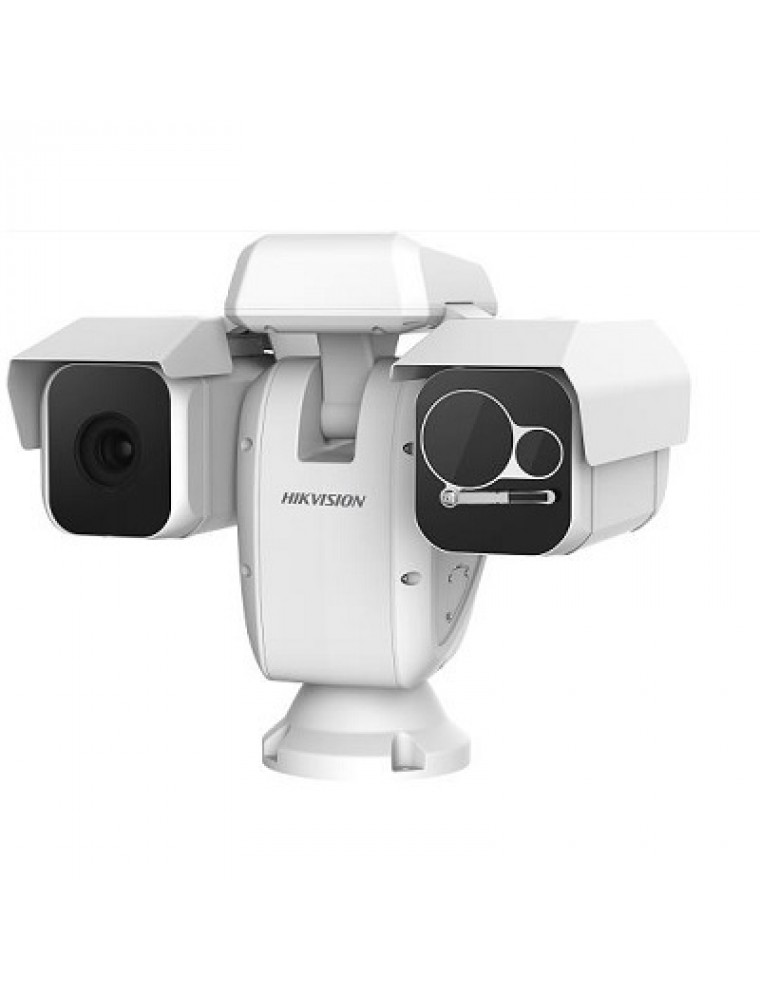

Thermal & Optical Bi-spectrum Network Positioning System

Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance & exit

Temperature exception alarm for fire prevention

Fire detection smoke detection algorithm

640 × 512 resolution 17 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)

Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR

thermal channel supports EIS, conflicted with intelligent function

• Thermal Module
• Image SensorVOx Uncooled Focal Plane Arrays
• Resolution640 × 512
• Pixel Interval17 μm
• Response Waveband8 μm to 14 μm
• NETDLess than 35 mK (@25 °C,F#=1.0)
• Focal Length75 mm
• Focus ModeSemi-auto & Manual
• IFOV0.23 mrad
• ApertureF1.0
• Field Of View8.3° × 6.64°(H × V)
• Min. Focusing Distance8 m
• Digital Zoom×1,×2, ×4, ×8

• Optical Module
• Image Sensor1/1.8" Progressive Scan CMOS
• Resolution2688 × 1520, 4 MP
• Min. IlluminationColor: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
• Field Of ViewWide: 0.92° × 0.52°; Tele: 48.26° × 28.43°
• Focal Length6 to 336 mm 56x
• Aperture (Range)F1.3-F4.0
• Focus ModeSemi-auto/Manual
• Shutter Speed1.1 s to 1/30,000 s
• WDR120 dB
• Optical DefogYes

• Image Effect
• Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
• Target ColorationYes. Supported in white hot and black hot mode.

• PTZ
• Movement RangePan: 360° Continuous Rotate; Tilt: From -90° to + 40° (auto flip)
• Pan SpeedConfigurable, From 0.01°/s to 110°/s
• Tilt SpeedConfigurable, From 0.01°/s to 50°/s
• Proportional ZoomYes
• Presets300 in total
• Patrol Scan8; Up to 32 Presets Per Patrol
• Pattern Scan4; More Than 10 Minutes Per Pattern
• Power Off MemoryYes
• ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PT StatusTurn On/Turn Off
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

• Illuminator
• IR DistanceUp to 800 m
• IR Intensity And AngleAutomatically adjusted

• Smart Function
• VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
• Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
• Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
• Temperature Accuracy± 8 °C (±14.4 °F)
• Fire DetectionDynamic fire point detection, up to 10 fire points detectable.

• Video And Audio
• Main Stream

  Optical channel

  50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)

  Thermal channel

  50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288)

• Sub-Stream

  Optical channel

  50 Hz: 25fps (704 × 576, 352 × 288)

  60 Hz: 30 fps (704 × 576, 352 × 288)

  Thermal channel

  50 fps (704 × 576, 640 × 512, 384 × 288)

• Video Compression

  Main stream: H.265+/H.265/H.264+/ H.264

  Sub-stream: H.265/H.264/MJPEG

• Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
• Simultaneous Live ViewUp to 20 channels
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
• ClientiVMS-4200, Hik-Connect
• Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

• Interface
• Alarm Input7-ch inputs (0-5 VDC)
• Alarm Output2-ch relay outputs, alarm response actions configurable
• Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
• Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio OutputLinear Level; Impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface

• Analog Video Output1.0 V [p-p]/75 Ω, BNC for thermal channel

• General
• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• Power36VDC ± 20%, 48VDC ± 20%, two-core terminal block
• Power Consumption

  5 A, max. 120 W

• Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
• WiperYes
• Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension486.1 mm × 337.6 mm × 450.3 mm (19.14 ‘’ × 13.29‘’ × 17.73 ‘’)
• Approx. 20 kg (44.092 lb)
