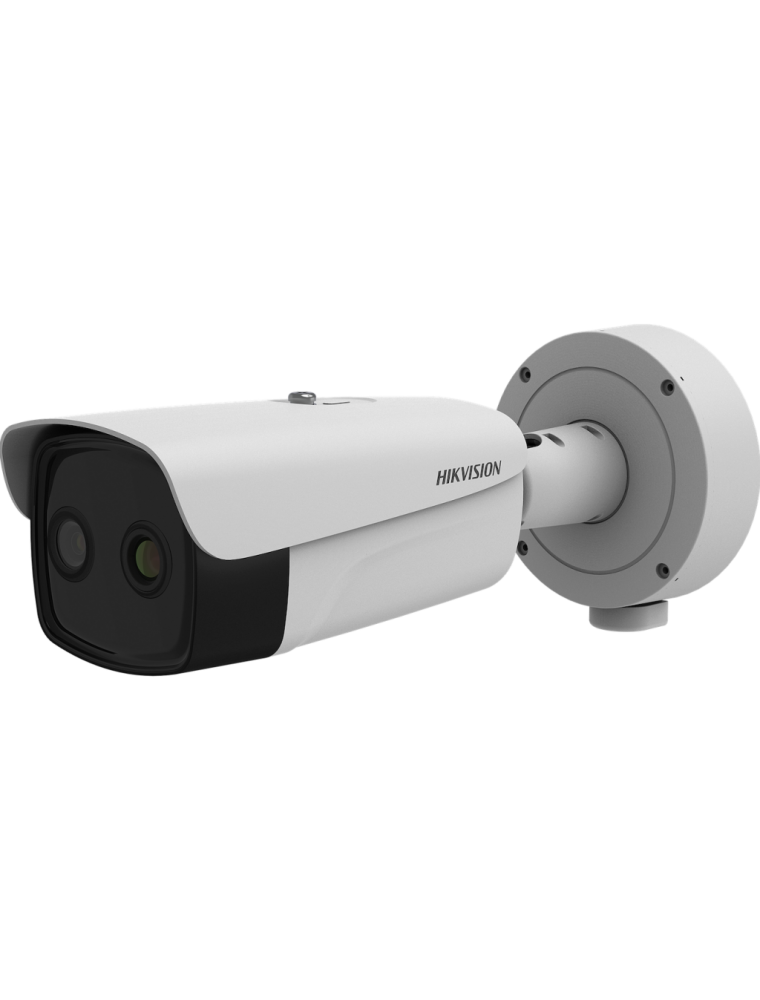

Temperature Screening Thermographic Bullet Camera

High sensitivity thermal module with 640x512 resolution

NETD is less than 40 mk (@25° C, F#=1.0)

Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR

Reliable temperature detection alarm

High quality optical module with 4 MP resolution

Bi-spectrum image fusion, picture-in-picture preview

• Thermal Module
• Image SensorVOx Uncooled Focal Plane Arrays
• Resolution640 × 512
• Pixel Interval17 μm
• Response Waveband8 μm to 14 μm
• NETDLess than 40 mK (@ 25 °C,F#=1.0)
• Focal Length15 mm
• Focus ModeAthermalized
• IFOV1.13 mrad
• ApertureF1.0
• Field Of View24.2°× 18.4° (H × V)
• Min. Focusing Distance2.5 m

• Optical Module
• Image Sensor1/2.7" Progressive Scan CMOS
• Resolution2688 × 1520, 4 MP
• Min. IlluminationColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
• Field Of View51.7° × 28° (H × V)
• Focal Length6 mm
• Focus ModeFixed
• Shutter Speed1s to 1/100,000s
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
• Day & Night ModeIR cut filter with auto switch
• WDR120 dB

• Image Effect
• Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
• Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel

• Illuminator
• IR DistanceUp to 50 m
• IR Intensity And AngleAutomatically adjusted

• Smart Function
• Temperature MeasurementSupport 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
• Temperature Range30 °C to 45 °C (86 °F to 113 °F)
• Temperature Accuracy± 0.5 °C

• Video And Audio
• Main Stream

  Thermal:

  50 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical:

  50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);Optical:

  60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub Stream

  Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:

  50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:

  60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)

• Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
• Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
• SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
• Simultaneous Live ViewUp to 20 channels

• Interface
• ClientiVMS-4200, Hik-Connect
• Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
• Alarm Input2-ch inputs (0-5vDC)
• Alarm Output2-ch relay outputs, alarm response actions configurable
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio OutputLinear Level; Impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface

• On-Board StorageBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording

• General
• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• WiperNo
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• Power24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
• Power Consumption

  18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W

  9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W

  PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W

• Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
• Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
• Approx. 1.82 kg (4.01 lb)
