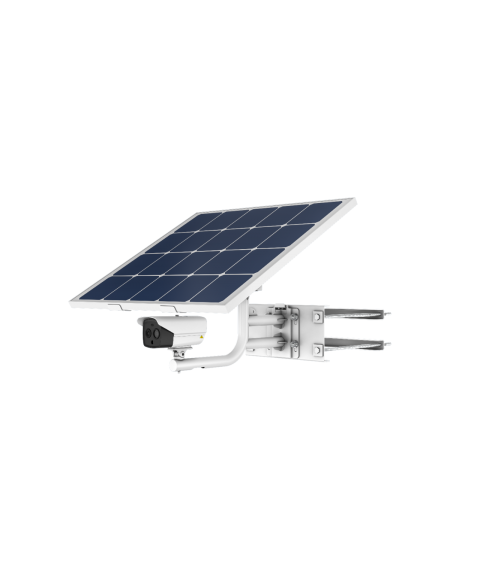

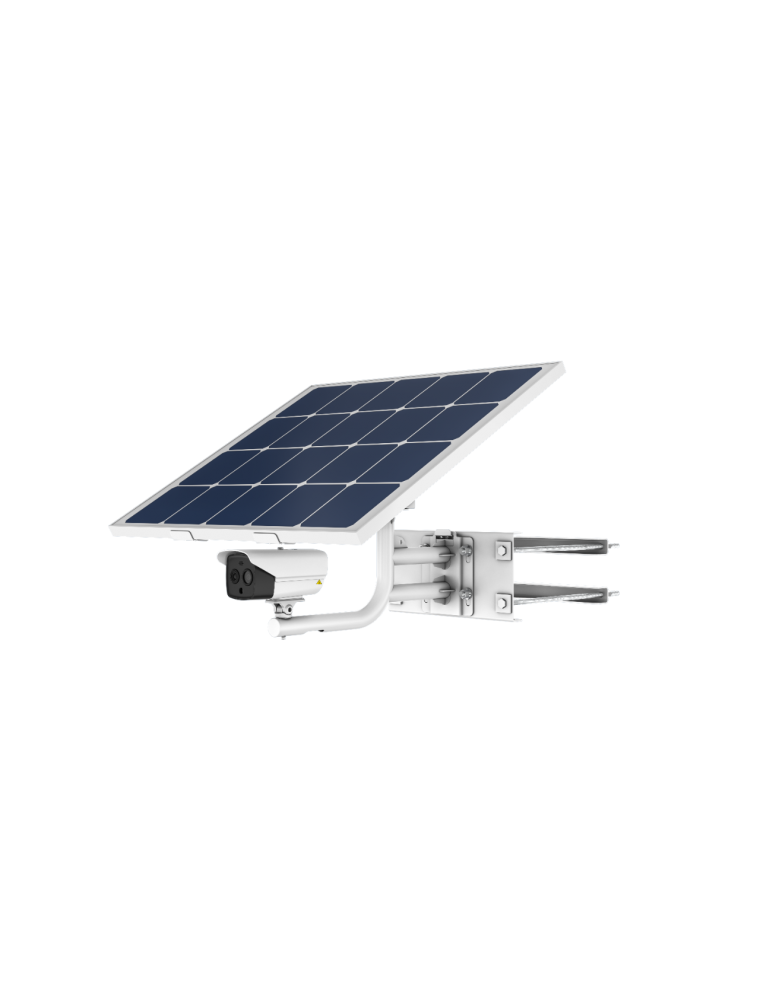

Solar-powered Thermal Camera Kit

256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)

Video content analysis: vehicle/human classification

80 W photovoltaic panel, 30 Ah chargeable lithium battery(The battery should be ordered separately.)

Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)

LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card

Water and dust resistant (IP67)

Embedded audible alert and strobe light

High quality detector with 10 years guarantee

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution256 x 192
• Pixel Pitch12 μm
• Spectral Range8 μm to 14 μm
• NETD≤ 40 mK (@25° C,F# = 1.0)
• Focal Length9.7 mm
• IFOV1.24 mrad
• ApertureF1.0
• Field Of View18.0° × 13.5° (H × V)
• Min. Focusing Distance1.5 m
• Digital Zoom×2, ×4

• Optical Module
• Image Sensor1/2.7" Progressive Scan CMOS
• Resolution2688 × 1520
• Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
• Field Of View39.4°(H) x22.1°(V)
• Focal Length8 mm
• ApertureF 1.6
• Shutter Speed1 s to 1/100,000 s
• White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
• Day & Night ModeIR Cut Filter with Auto Switch
• WDR120 dB

• Image Effect
• Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
• Target ColorationYes. Supported in white hot and black hot mode

• Illuminator
• IR DistanceUp to 30 m
• IR Intensity And AngleAutomatically adjusted

• Audible And Visual Alarm
• White Light RangeUp to 30 m
• Visual Alarm

  Yes. White light alarm with adjustable flashing frequencies

• Audio Alarm

  Yes, for three types of audible alarm (VCA and Temperature Exception)

  3 preset voice alerts (one for each)

  6 importable user-defined voice alerts (6 options shared in the two types)

• Smart Function
• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range-20°C to 150°C (-4°F to 302°F)
• Temperature Accuracy± 8°C (± 14.4°F)

• Video And Audio
• Main Stream

  Thermal:

  25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

  Optical:

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  Thermal:

  25 fps (704 × 576, 640 × 512, 320 × 240)

  Optical:

  50 Hz: 25 fps (704 × 576, 352 × 288)

  60 Hz: 30 fps (704 × 480, 352 × 240)

• Video Compression

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

• Network
• ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
• Network StorageMicroSD/SDHC/SDXC card (32G inside) (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
• Simultaneous Live ViewUp to 20 channels
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
• ClientiVMS-4200, Hik-Connect

• Interface
• Alarm Input2, alarm input (0-5 VDC)
• Alarm Output2, alarm output (alarm response actions configurable)
• Alarm ActionLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
• Audio Input

  1, 3.5 mm Mic in/Line in interface

  Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%

• Audio OutputLinear level, impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface (half duplex)

• General
• Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply

  12 VDC ± 25%, φ 5.5 mm coaxial power plug

  PoE (802.3af, class 3)

• Power Consumption

  Thermal only mode power consumption: 2.73W

  The average power consumption of 24 hours: 2.97W

  The max. power consumption: 7.1W (IR light on)

• Working Temperature/Humidity

  Temperature: -40°C to 65°C (-40°F to 149°F)

  Humidity: 95% or less

• Protection Level

  IP67 Standard ,IK10-rated housing

  TVS 4000V lightning protection, surge protection, voltage transient protection

• Dimensions208.9 mm × 106 mm × 105.2 mm (8.22" × 4.17" × 4.14")
• Adjustment Range

  Bullet camera: Tilt: -10 ° to +45°, Pan: -180 ° to +180°

  Photovoltaic panel: Tilt: 10 ° or 30°

• 26.6kg(58.64lb)
• MountPole Mount
• With Package Weight27.79kg(61.26lb)
• Storage Conditions

  Temperature: -40°C to 65°C (-40°F to 149°F)

  Humidity: 95% or less

• Startup And Operating Conditions

  Temperature: -40°C to 65°C (-40°F to 149°F)

  Humidity: 95% or less

• Mobile Communication
• SIM Card TypeMicroSIM
• Frequency

  LTE FDD: B 1/3/5/7/8/20/28

  LTE TDD: B 38/40/41

  WCDMA: B 1/5/8

• StandardLTE FDD/LTE TDD/WCDMA

• Battery
• Battery Type

  Lithium

  *The battery should be ordered separately.

• Battery Voltage10.8 V
• Battery Capacity30 Ah
• Operating Temperature

  Charging: -20 °C to 45 °C (-4 °F to 113 °F)

  Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

• Battery LifeMore than 500 cycles
• Battery WeightApprox. 3.3 kg (7.3 lb.)
• Extended Dimension236 × 154 × 80 mm (9.3 " × 6.1 " × 3.2 ")
• Max. Output Voltage12.6 V

• Approval
• EMC

  CE-EMC：EN 55032:2015+A11:2020；EN 50130-4:2011+A1:2014；EN IEC 61000-3-2:2019+A1:2021；EN 61000-3-3:2013+A1:2019

  FCC SDOC：47 CFR Part 15，Subpart B

• RFCE-RED : EN 301 489-1 V2.2.3; EN 301 489-19 V2.2.0; EN 301 489-52 V1.2.1; EN 301 511 V12.5.1; EN 301 908-1 V13.1.1; EN 301 908-2 V13.1.1; EN 301 908-13 V13.1.1; EN 303 413 V1.1.1; EN 62311:2008
• Safety

  CB : IEC 62368-1: 2014

  CE-LVD： IEC 62368-1: 2014

• Environment
