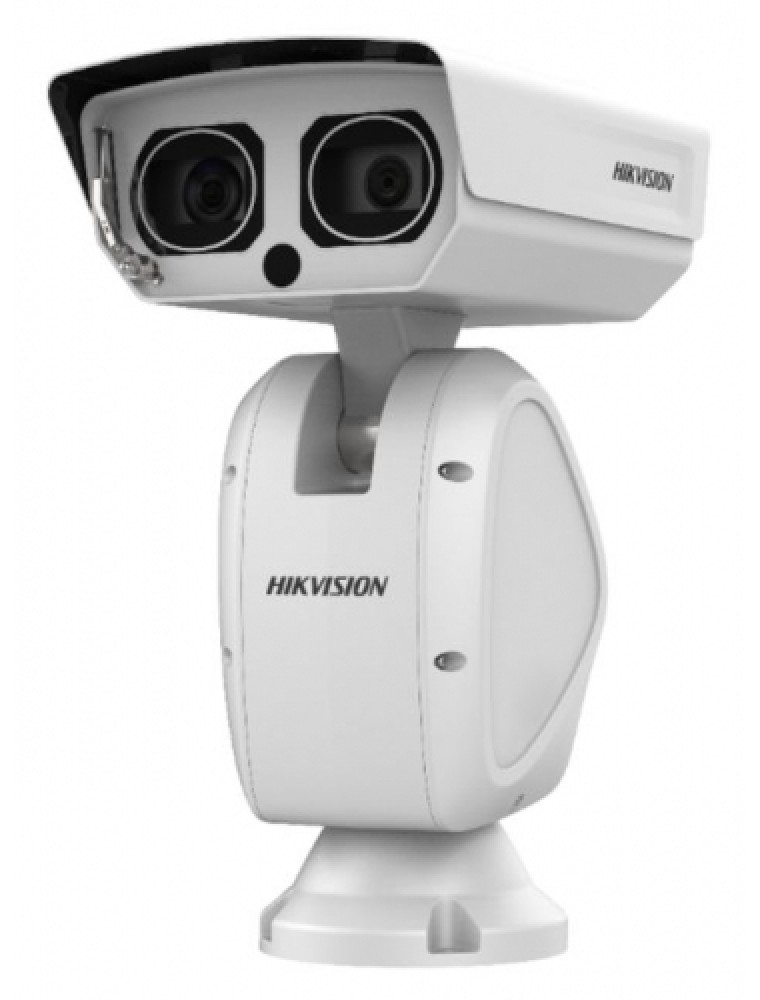

2 MP 36X DarkFighter Laser Network Positioning System

High quality imaging with 2 MP resolution

Excellent low-light performance via DarkFighter technology

36x optical zoom provides close up views over expansive areas

Expansive night view with 800 meter laser IR

Water and dust resistant (IP66)

• Lens
• Zoom SpeedApprox. 4.4 s (optical lens, wide-tele)
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.5 to F4.5
• Focal Length5.6 mm to 207 mm, 36× Optical
• Field Of ViewHorizontal field of view: 59.8-2.0° (wide-tele), Vertical field of view: 33.6-1.1° (wide-tele), Diagonal field of view: 68.6 -2.3° (wide-tele)

• Image
• Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
• Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• SVCYes

• Network
• Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
• APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users. 3 levels: Administrator, Operator and User
• ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+,Edge 16.16299+, Safari 11+
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Alarm LinkageAlarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, and Audio Visual Alarm etc.
• Alarm7-ch alarm input/2-ch alarm output
• Audio1-ch audio input, 1-ch audio output

• Interface
• Network Interface1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
• RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
• CVBS1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

• Compression Standard
• H.264+Yes
• H.265+Yes
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Video CompressionMain Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG,
• H.265 TypeMain Profile
• Video Bitrate32 Kbps to 16384 Kbps
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
• Laser Distance800 m

• Smart Feature
• Smart EventFace Detection, Audio Exception Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection
• Smart RecordANR (Automatic Network Replenishment), Dual-VCA
• ROIEight fixed region for each stream

• Camera Module
• 3D DNRYes
• Regional ExposureYes
• Regional FocusYes
• Image Sensor1/1.9’’ Progressive Scan CMOS
• Min. IlluminationColor：0.002Lux @ (F1.5, AGC ON), B/W：0.0002Lux @(F1.5, AGC ON), 0 lux with IR
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• GainAuto/Manual
• Shutter Time1/1 s to 1/30,000 s
• Day & NightIR Cut Filter
• Digital Zoom16×
• Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
• Focus ModeAuto/Semi-automatic/Manual
• WDR120 dB
• BLCYes
• HLCYes
• EISYes
• DefogYes

• PTZ
• Movement Range (Pan)360° endless
• Pan SpeedConfigurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
• Movement Range (Tilt)From -90° to 40°
• Tilt SpeedConfigurable, from 0.1°/s to 40°/s, Preset Speed: 100°/s
• Proportional ZoomYes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-Off MemoryYes
• Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• 3D PositioningYes
• PTZ Status DisplayYes
• Preset FreezingYes
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

• General
• MaterialAluminum alloy, ADC12
• DimensionsΦ 251 mm × 360 mm x 508 mm (9.88" × 14.17" × 20")
• Approx. 20 Kg ( 44.09 lb.)
• Protection LevelIP66 Standard, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power24 VAC, max. 110 W
• Working Environment- 40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%
