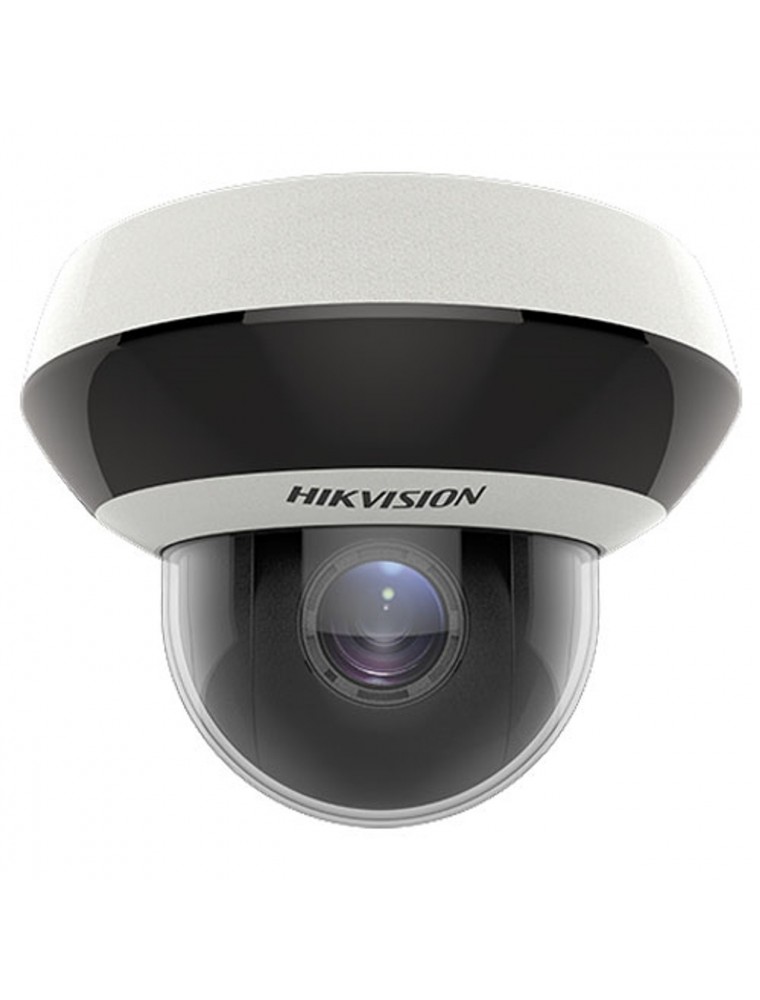

2-inch 4 MP 4x Zoom Wi-Fi IR Mini PT Dome Network Camera
High quality imaging with 4 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
4x optical zoom allows for closer viewing of subjects in expansive areas
Up to 20 m IR range ensures safety at night
Water and dust resistant (IP66) and vandal proof (IK10)
Supports Wi-Fi connection and easy installation
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
- Shutter Speed1/1 s to 1/30,000 s
- Day & NightIR cut filter
- Zoom4x optical, 16x digital
- Slow ShutterYes
- Lens
- Focal Length2.8 to 12 mm
- FOVHorizontal FOV 96.796° to 31.68°, vertical FOV 51.16° to 17.798°, diagonal FOV 115.13° to 36.32°
- FocusAuto, semi-auto, manual
- ApertureMax. F1.5
- Zoom SpeedApprox. 2 s
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeIR Distance: up to 20 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- PTZ
- Movement Range (Pan)0° to 355°
- Movement Range (Tilt)0° to 90°
- Pan SpeedPan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s
- Proportional ZoomYes
- Presets300
- Preset FreezingYes
- Park ActionPreset
- 3D PositioningYes
- PTZ Status DisplayYes
- Scheduled TaskPreset, dome reboot, dome adjust
- Power-Off MemoryYes
- Video
- Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
- Audio Sampling Rate
AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/HostUp to 32 users; 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, HikCentral Pro, Hik-Connect
- Web BrowserIE 10-11, Chrome 57+, Firefox 52+, Safari 11+
- Wireless (Wi-Fi)
- Encryption Mode64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Wi-Fi ProtocolsIEEE802.11b, 802.11g, 802.11n
- Frequency Range2.4 GHz - 2.4835 GHz
- Channel Bandwidth20/40 MHz
- Modulation
802.11b: CCK, DQPSK, DBPSK
802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK
802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
- Transfer Rate
802.11b: 11, 5.5, 2, 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n: mcs0 - msc7
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR＞52 dB
- DefogDigital Defog
- Image StabilizationNo
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional FocusYes
- Regional ExposureYes
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Built-In Microphone1 built-in microphone, picking up sounds in the radius up to 5 meters
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
- ResetYes
- Power Output12 VDC, max. 60 mA
- Event
- Basic EventMotion detection, video tampering alarm, exception
- Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset)
- General
- Power12 VDC, Max. 11.2 W; PoE (802.3af)
- DimensionØ 130.7 mm ×101.7 mm (Ø 5.15" × 4.00")
- Approx. 530 g (1.17 lb.)
- Operating Condition-20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)
- General FunctionMirror, password protection
- Approval
- ProtectionIP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection
