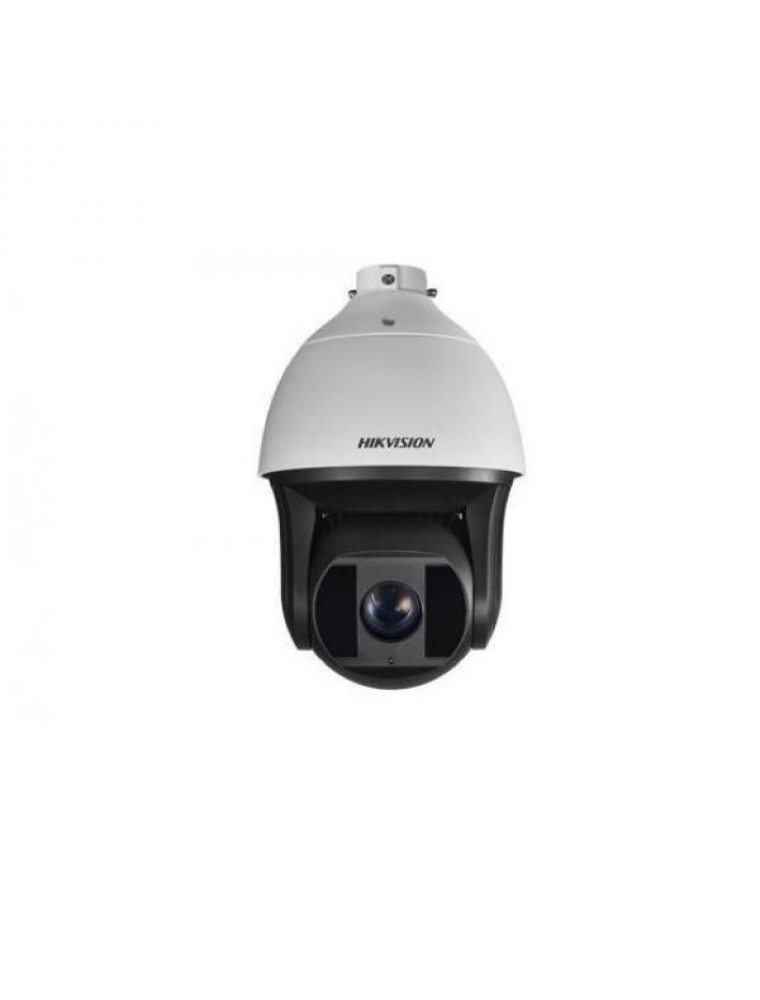

5-inch 2 MP 32X Powered by DarkFighter Analog Speed Dome

High quality imaging with 2 MP resolution

Excellent low-light performance via powered-by-DarkFighter technology

Clear imaging against strong back lighting due to 120 dB WDR technology

Pan and tilt ability enables camera to monitor zones of interest

32x optical zoom allows for closer viewing of subjects in expansive areas

Up to 150m IR range ensures safety at night

Water and dust resistant (IP66)

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. Illumination

  Color: 0.005 Lux @(F1.2, AGC ON)

  B/W: 0.001 Lux @(F1.2, AGC ON)

  0 lux with IR

• Shutter Speed

  PAL: 1/1 s to 1/10,000 s

  NTSC: 1/1 s to 1/10,000 s

• Day & NightIR cut filter
• Zoom32 × optical, 16 × digital

• Lens
• Focal Length4.8 mm to 153 mm, 32 × optical
• FOV

  Horizontal FOV: 55.6° to 2.04° (wide to tele)

  Vertical FOV: 32.4° to 1.14° (wide to tele)

  Diagonal FOV: 63° to 2.34° (wide to tele)

• FocusAuto, semi-auto, manual
• ApertureF1.2 to F4.4
• Zoom SpeedApprox. 5.6 s (optical, wide to tele)

• Illuminator
• Supplement Light TypeIR
• Supplement Light Range150 m

• PTZ
• Movement Range (Pan)360° endless
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan Speed

  Pan manual speed: 0.1° to 120°/s

  Pan preset speed: 120°/s

• Tilt Speed

  Tilt manual speed: 0.1° to 80°/s

  Tilt preset speed: 80°/s

• Proportional PanRotation speed can be adjusted automatically according to zoom multiples
• Presets256
• Preset FreezingYes
• Patrol Scan10 patrols, up to 32 presets for each patrol
• Pattern Scan5 patterns, record time over 10 minutes for each scan
• Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
• PTZ Status DisplayYes
• Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
• Power-Off MemoryYes

• Video
• Frame Rate

  50 Hz: 25 fps @(1920 × 1080)

  60 Hz: 30 fps @(1920 × 1080)

• Network
• ProtocolsUTC protocol (or HIKVISION-C protocol in previous DVR)

• Image
• Image SettingsAGC, white balance
• Wide Dynamic Range (WDR)≥ 120 dB
• Image StabilizationEIS
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Mask8 programmable privacy masks
• Regional FocusYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
• Alarm2 alarm inputs, 1 alarm output
• RS-485

  Half-duplex mode

  Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

• General
• Power24 VAC, max. 30 W (IR: 10 W)
• DimensionΦ 208 mm × 305 mm (Φ 8.19" × 12.01")
• Approx. 3.3 kg (7.28 Ib.)
• Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
• LanguageEnglish

• Approval
• ProtectionIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
