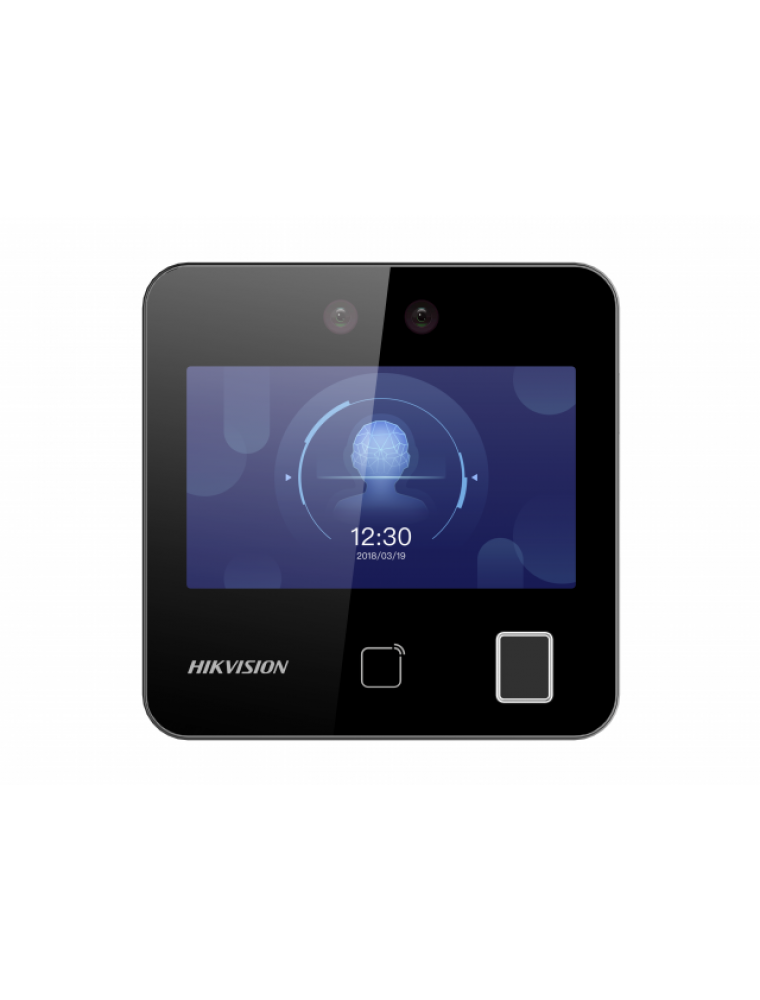

Value Series Face Access Terminal

Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards

Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in EM card reading module

Two-way audio with client software, indoor station, and main station; Supports TCP/IP

Supports ISAPI, ISUP5.0

Configuration via the web client

Face recognition. Distance: 0.3 m to 1.5 m

Duration ＜ 0.2 s/User

Accuracy rate ≥ 99%

• System
• Operation SystemLinux

• Display
• Dimensions4.3-inch
• Resolution480 × 272
• TypeLCD
• Operation MethodCapacitive touch screen

• Video
• Pixel2 MP
• Lens× 2
• Video StandardPAL (Default) and NTSC

• Network
• Wired Network10 M/100 M self-adaptive
• Wi-FiNot support

• Interface
• Network Interface1
• RS-4851
• Wiegand1
• Lock Output1
• Exit Button1
• Door Contact Input1
• IO Input-
• IO Output-
• TAMPER1
• USB1

• Capacity
• Card Capacity3,000
• Face Capacity1,500
• Fingerprint Capacity3,000
• Event Capacity150,000

• Authentication
• Card TypeEM card
• Card Reading Frequency125 KHz
• Face Recognition Duration＜ 0.2 s
• Face Recognition Accuracy Rate＞99%
• Face Recognition Distance0.3 to 1.5 m
• Fingerprint Recognition Duration＜1 s

• Function
• Face Anti-SpoofingSupport
• Audio PromptSupport
• Time SynchronizationSupport

• General
• Power Supply12 VDC/1 A (power adapter included)
• Working Temperature-10 °C to 40 °C (14 °F to 104 °F)
• Working Humidity0 to 90% (No condensing)
• Dimensions118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86")
• Application EnvironmentIndoor
• InstallationWall Mounting; Base Mounting
• LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese
