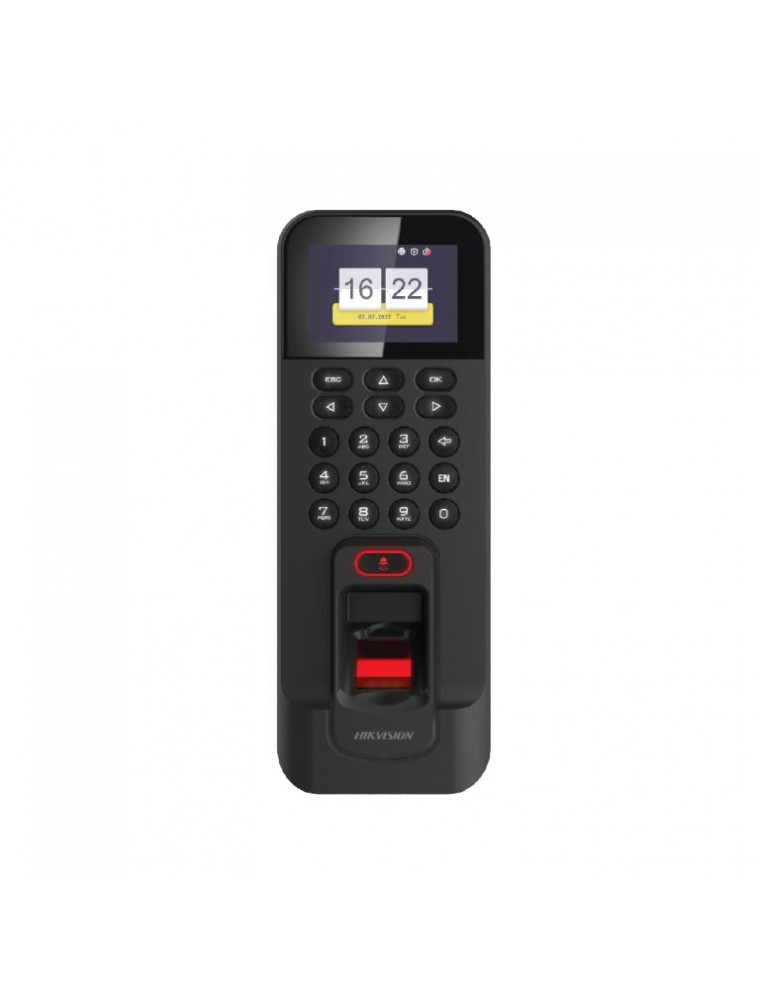

K1T804 Value Series Fingerprint Access Terminal

Standalone access control fingerprint terminal

LCD display screen

3,000 fingerprints, 3,000 cards and 100,000 events storage

Built-in card reader for EM/Mifare1 card(optional)

Communication via TCP/TP and Wi-Fi

RS-485, wiegand interface

EHome for public network communication

Alarm input and output interface

Multiple time attendance status

• Display
• Screen Size2.4-inch
• TypeLCD-TFT display screen

• Audio
• Audio Output1 loudspeaker, 1 buzzer

• Network
• Wired NetworkTCP/IP, 10/100Mbps, self-adaptive
• Wi-FiSupport

• Interface
• Network Interface1
• USB1

• Capacity
• Card Capacity3000
• Fingerprint Capacity3000
• Event Capacity100,000

• Authentication
• Card TypeEM card
• Card Reading Distance0 to 5 cm
• Card Reading Duration＜ 1 s
• Fingerprint ModuleOptical fingerprint module
• Fingerprint Comparing Mode1:1 and 1:N
• Fingerprint Recognition Duration＜ 1 s

• General
• IndicatorPower/status (red/green)
• Power Supply5 VDC/1 A
• Working Temperature-10 °C to +55 °C (14 °F to +131 °F)
• Working Humidity10% to 90% (no condensing)
• ColorBlack
• Dimensions140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
• Application EnvironmentIndoor
• InstallationSurface mounting, desk stand
