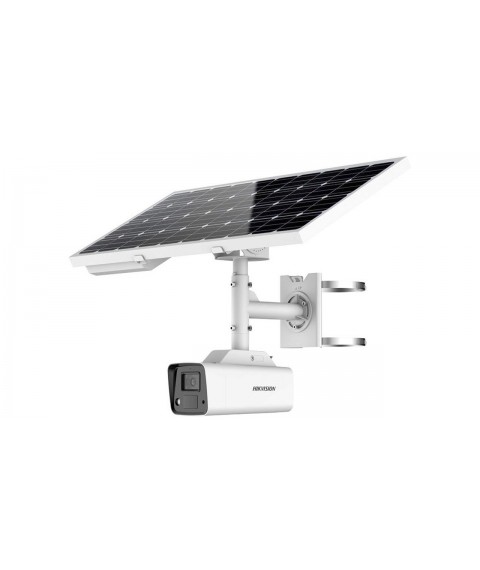

4MP ColorVu Solar-powered Security Camera Setup

High quality imaging with 4 MP resolution

Standalone with solar panel and built-in battery

24/7 colorful imaging

Efficient H.265+ compression technology

Provide real-time security via built-in two-way audio

Water and dust resistant (IP67)

Stability against category 12 typhoon

Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA/EVDO) communication

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
• Shutter Time1/3 s to 1/100,000 s
• Angle Adjustment

  Solar Cover: Pan: 0° to 358°, tilt: -40° to 40°

  Camera: Pan: 0° to 360°，tilt: -60° to 0°

• Lens
• Lens TypeFixed focal lens, 4 and 6 mm optional
• ApertureF1.0
• Focal Length & FOV

  4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°

  6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°

• Lens MountM16

• DORI
• DORI

  4mm, D: 77 m, O: 30 m, R: 15 m, I: 8 m

  6mm, D: 116 m, O: 46 m, R: 23 m, I: 12 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light Range

  Performance mode: up to 30 m

  Proactive mode: up to 10 m

• Smart Supplement LightYes

• Video
• Main Stream

  50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 12.5 fps (640 × 480, 640 × 360)

  60 Hz: 15 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/ H.264

  Sub-stream: H.265/H.264/MJPEG

  H.264+: Performance mode: main stream supports

  H.265+: Performance mode: main stream supports

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Region Of Interest (ROI)1 fixed region for main stream
• Scalable Video Coding (SVC)H.265 and H.264 support

• Audio
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

• Network
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI, SDK, ISUP
• ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, SNMP, HTTPS, 802.1X
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• Network StorageAuto network replenishment (ANR)
• Client

  iVMS-4200, Hik-Connect, Hik-Central

  Proactive mode: Hik-Connect

• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Mobile Communication
• Frequency

  LTE-TDD: Band 38/40/41;

  LTE-FDD: Band 1/3/5/7/8/20/28;

  WCDMA: Band 1/5/8;

  GSM: band 3/5/8

• StandardLTE-TDD, LTE-FDD, WCDMA, GSM

• Image
• SNR≥ 52 dB
• Wide Dynamic Range (WDR)120 dB
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• PIR
• PIR AngleHorizontal: 100°, vertical: 80°
• PIR RangeUp to 15 m

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

  Built-in 64 GB eMMC storage (50 GB avaible for recording)

• Built-In MicrophoneYes
• Built-In SpeakerYes
• Reset KeyYes

• Event
• Basic EventMotion detection, video tampering alarm, exception, PIR
• LinkageUpload to memory card, notify surveillance center, audible warning, trigger recording, trigger capture, send email

• General
• Power

  Power Consumption and Current:

  Typical power scenarios: 1.85 W (4 G working)

  Standby scenarios: 40 mW

  Max. power consumption: 7.2 W

  Power Supply:

  12 VDC ± 25%

  *For debugging only

  40 W(deviation: ± 2 W) Solar panels

  Power Interface:

  Power supply interface: Φ5.5 mm coaxial power plug

  Extened solar panel: four-core aviation connector

• MaterialADC12
• Storage Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionHeartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Startup And Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
• Dimension614.8 mm × 390.5 mm × 760 mm (24.2" × 15.4" × 29.9")
• Package Dimension837 mm × 267 mm × 445 mm (33" × 10.5" × 17.5")

• Pre-install plate: approx. 1080 g (2.4 lb.)

  Bullet camera + bracket + solar panel: approx. 8540 g (18.8 lb.)

• With Package Weightapprox. 11860 g (26.1 lb.)

• Battery
• Battery TypeTernary lithium
• Capacity23.2 Ah
• Max. Charging Voltage8.4 V
• Operating Temperature

  Charge: -20 °C to 45 °C (-4 °F to 113 °F). Charging Condition: -20 °C to 45 °C (-4 °F to 113 °F) (deviation: ± 5 °C)

  Discharge: -20 °C to 55 °C (-4 °F to 131 °F). Discharging Condition: -20 °C to 55 °C (-4 °F to 131 °F) (deviation: ± 5 °C)

• Battery Voltage5.5 V to 8.4 V
• Cycle Lifetime

  Performance mode: 2.5 day

  Proactive mode: 4.5 day

  Standby mode: 24 days

• Battery LifeMore than 500 cycles

• Approval
• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015)
