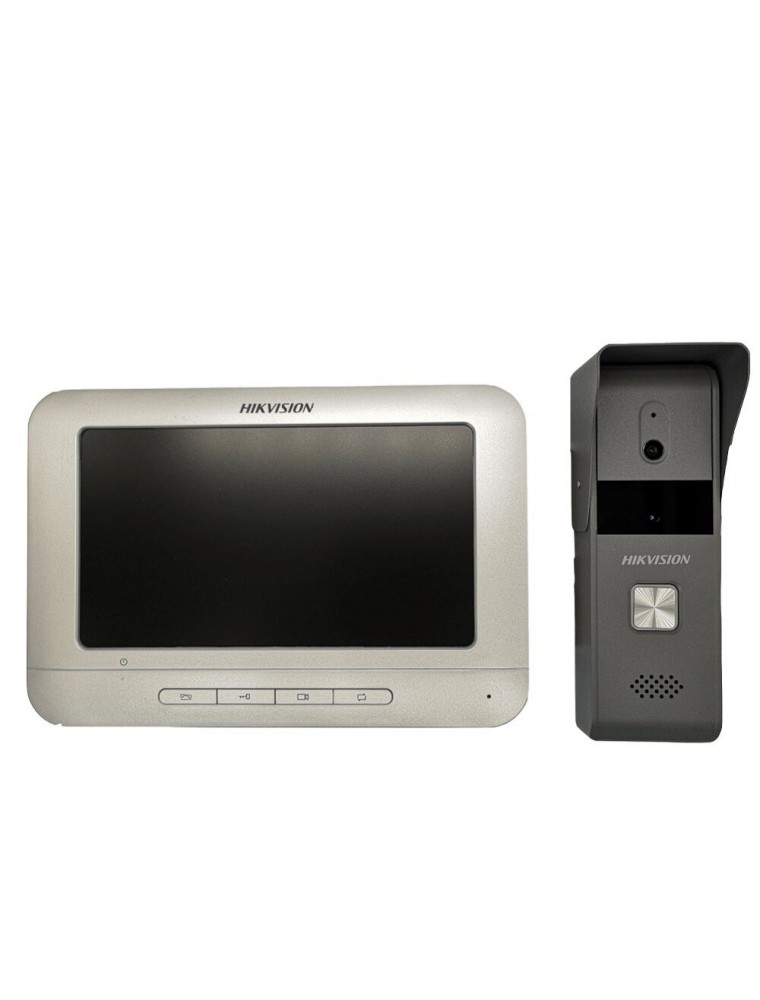

Villa Analog Kit

Analog Kit for villa or house, only one call button

Kit including DS-KB2421-IM and DS-KH2220, 5-meter 4-wire cable, and other accessories

European power supply adaptor included (please mark for other standards when you order)

• Door Station/Video Parameters
• Camera1/4" CMOS
• Resolution720 × 576
• Video Frame RatePAL: 25 fps

• Door Station/Audio Parameters
• Audio InputBuilt-in Omnidirectional Microphone
• Audio OutputBuilt-in Loudspeaker
• Audio QualityNoise Suppression and Echo Cancellation

• Door Station/Device Interfaces
• Four-Wire Interface

  1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power

  Supply, 1-ch Grounding)

• IO Output1 Relay Output

• Door Station/General
• MaterialAluminum Alloy
• Power ConsumptionMax. 3W
• Working Temperature-30° C to +60° C (-22° F to 140° F)
• Working Humidity10% to 90%
• Dimension (L X W X H)128 mm × 42 mm × 24.8 mm (5.0" × 1.7" × 0.9")

• Indoor Station/Display Parameters
• Display Screen7-Inch Colorful TFT LCD
• Display Resolution800 × 480
• Operation MethodPhysical Button

• Indoor Station/Audio Parameters
• Audio InputBuilt-in Omnidirectional Microphone
• Audio OutputBuilt-in Loudspeaker
• Audio QualityNoise Suppression and Echo Cancellation

• Indoor Station/Device Interfaces
• Four-Wire Interface

  4 Four-Wire Interfaces

  1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding

• Indoor Station/General
• Power Supply12 VDC
• Power Consumption≤5 W
• Working Temperature-10° C to + 55° C (14° F to 131° F)
• Working Humidity10% to 90%
• Dimension (L X W X H)195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
