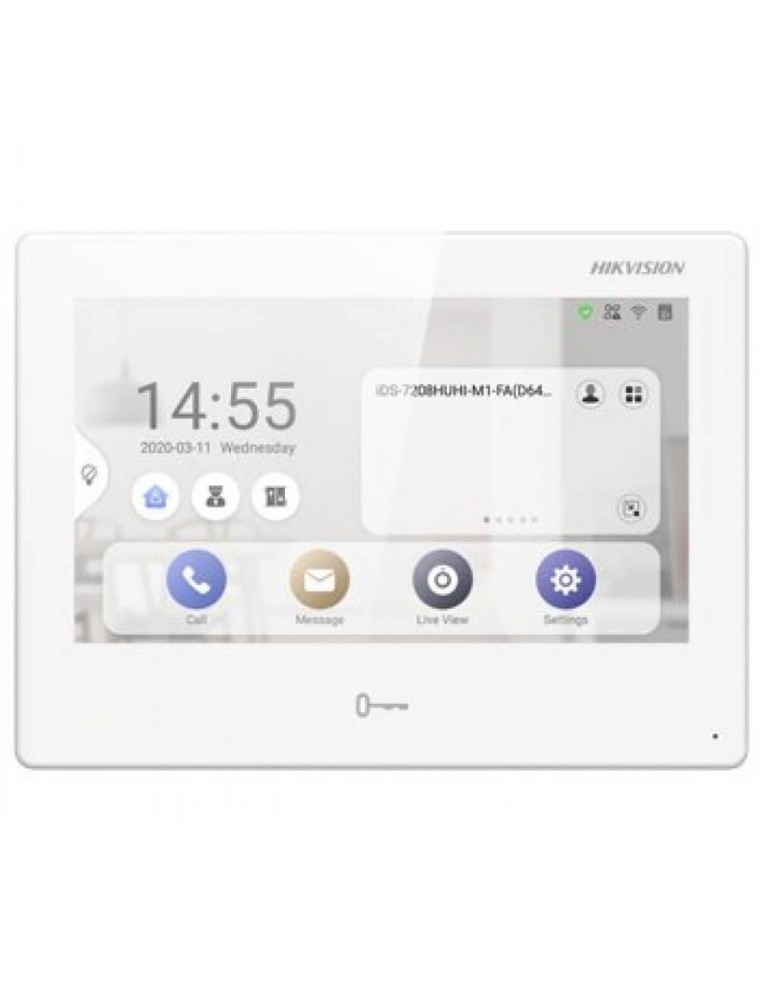

Android Indoor Station

7-inch colorful touch screen with resolution 1024 × 600

Supports Android app installation

Open platform for the third-party software integration

Video intercom & live view on mobile phone all-day

Built-in Hik-Connect for all-in-one management

Wireless intrusion panel for on-site management

Receives 7 seconds of video verification from alarm systems

• Display Parameters
• Size7-inch
• Operation MethodCapacitive touch screen
• TypeColorful TFT

• Video Parameters
• Lens/
• FOV/
• Pixel/

• Audio Parameters
• Audio QualityNoise suppression and echo cancellation

• Network Parameters
• Communication ProtocolTCP/IP, SIP, RTSP
• Wired NetworkSupport
• Wi-FiWi-Fi 802.11 b/g/n
• Bluetooth/
• Zigbee/

• Device Interfaces
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• Power Interface1

• General
• Button/
• InstallationSurface mounting
• Indicator/

• Without package: 419.3 g

  With package: 694 g

• Protective Level/
• Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity10% to 90%
• Dimensions187 mm × 137 mm × 25.7 mm (7.36" × 5.39" × 1.01")
• Battery/
• Power Supply

  IEEE802.3af, standard PoE

  12 VDC, 1 A

• Application EnvironmentIndoor
• Power Consumption≤ 8 W
