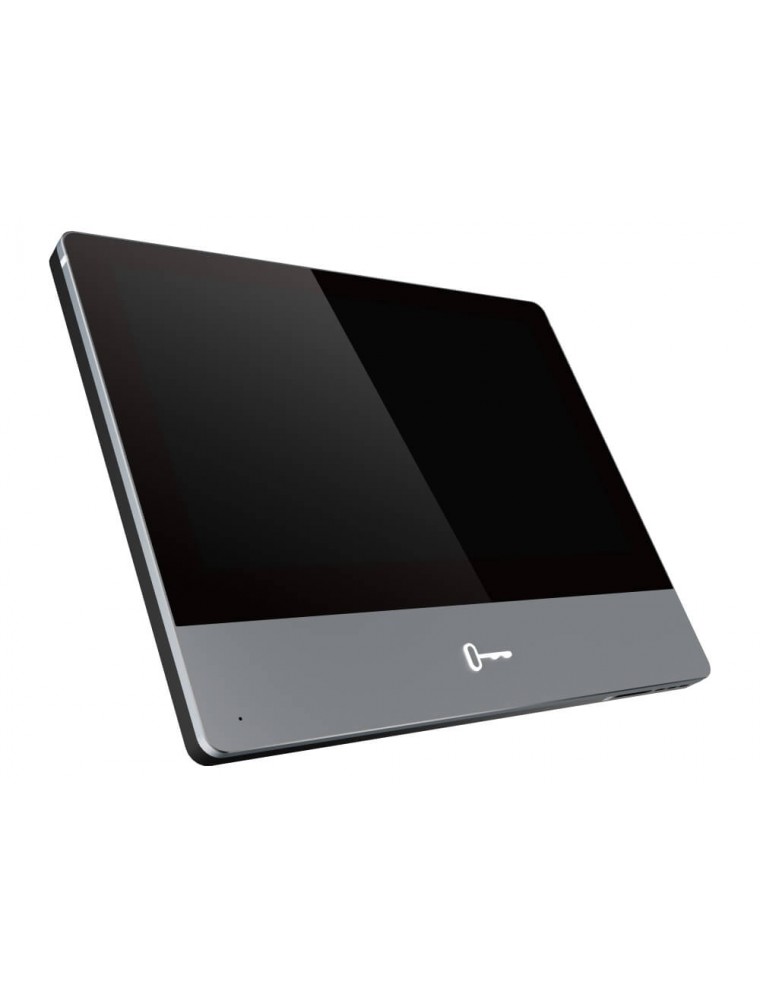

KH8 Series Indoor Station

Premium tempered glass

Aerospace-grade aluminum

New UI V2.0: User friendly design

7-inch colorful touch screen with resolution 1024 × 600

8.6 mm Ultra-slim design

• Display Parameters
• Size7-inch
• Operation MethodCapacitive touch screen, physical button
• TypeColorful IPS screen

• Video Parameters
• Lens/
• FOV/
• Pixel/

• Audio Parameters
• Audio QualityNoise suppression and echo cancellation

• Network Parameters
• Communication ProtocolTCP/IP, SIP, RTSP
• Wired Network10/100 Mbps self-adaptive
• Wi-Fi/
• BluetoothNot supported.
• Zigbee/

• Device Interfaces
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• Power Interface1

• General
• Button1
• InstallationSurface mounting
• Indicator/

• With package: 786 g

  Without package: 600 g

• Protective Level/
• Power Supply Method

  IEEE802.3af, standard PoE

  12 VDC/1 A

• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimensions180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
• Battery/
• Application EnvironmentIndoor
• Power Consumption≤ 7 W
