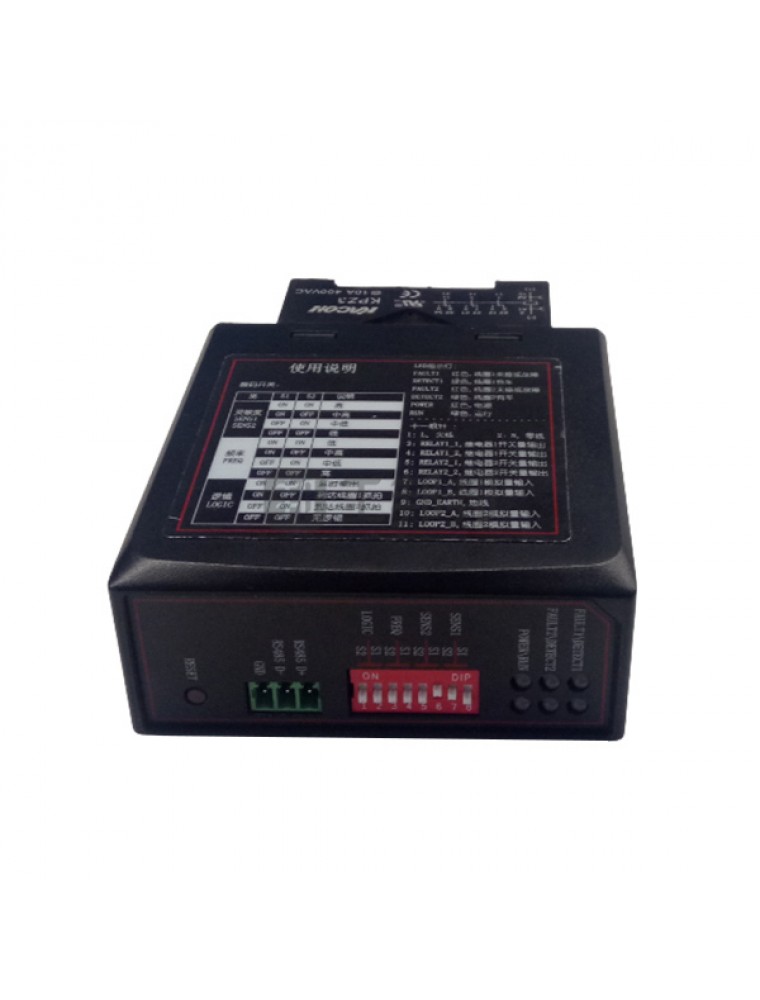

Coil Vehicle Detector

Including 2 inputs of inductive loops

Recognizes vehicles of more than two wheels

Detects traffic events including forward/wrong-way driving and speeding

Accepts traffic lights connection to upload light status

Fault detection to output operating status of loops and traffic light detector

Supports voltage surge protection

Specification

• General
• Power Supply220 VAC
• Dimensions105 × 88 × 40mm
• Inductance Self-Tuning Range20 to 1000 μH
• Vehicle Detection Rate≥ 99%
• Sensitivity (-△L/L)0.02% to 0.96%, 4 levels adjustable
• Loop Operating Frequency28 KHz to 120 KHz, 4 levels adjustable (highest, high, low, lowest)
• Max. Response Time32±2ms
• Loop Fault Recovery Time≤ 100ms
• Loop Fault Detection Interval≤ 10ms
• Output Port2 relay output, VDRM 70 V, max. current 30 mA
• Power Consumption≤ 3 W
• Operating Temperature-30 °C to +70 °C (-31 °F to 167 °F)
• Operating Humidity< 90%, non-condensing
