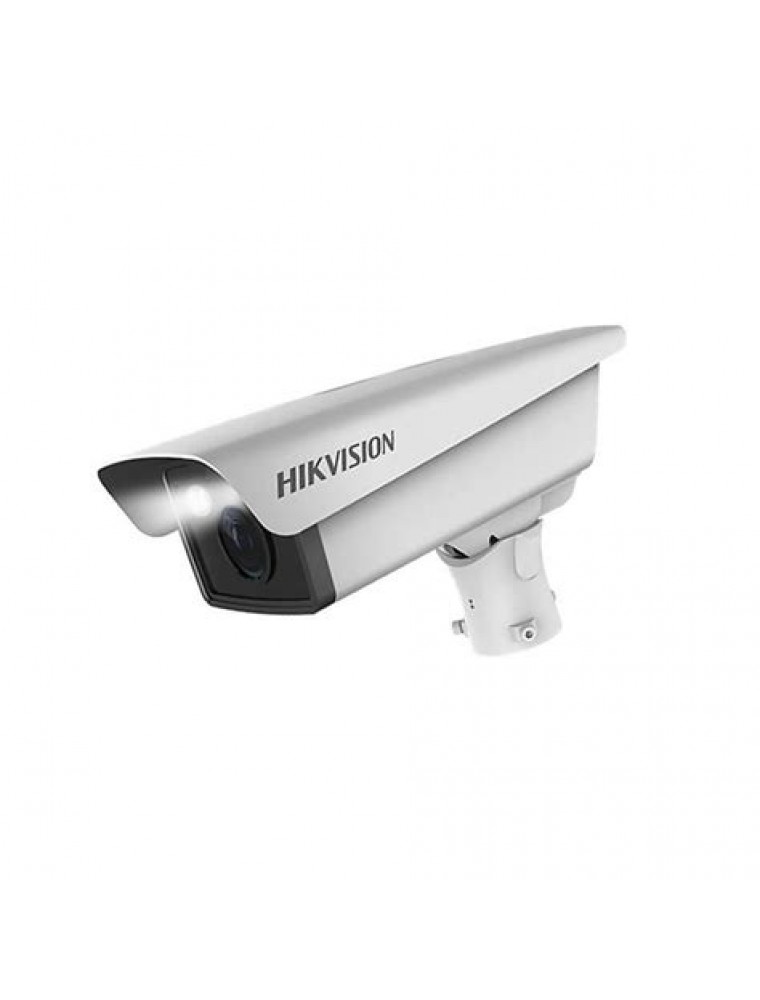

2 MP ANPR IR Intelligent Entrance Video Unit

1/2.8" Progressive Scan CMOS

Up to 1920 × 1200 resolution with real-time video

2x pics high-performance IR LEDs (Valid for IR camera models)

3.1 to 9mm motorized vari-focal lens

Support relay output to control vehicle barrier

Support loop triggering or video triggering

Support multi-frame LPR

Support dirty license plate recognition

Support quick pass of multiple vehicles

Support vehicle type, vehicle color and vehicle brand recognition

Integrated shield, lights, TF Card (up to 128 G)

Up to 30,000 whitelists

Offline control

PoE (802.3af)

One-touch focus

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Min. Illumination

  Color: 0.002Lux@(F1.2, AGC ON)

  B/W: 0.002Lux@(F1.2, AGC ON)

• Shutter Speed1/30 s to 1/100,000 s
• Lens3.1 mm to 9 mm
• IR Cut FilterSupport

• Compression Standard
• Video CompressionH.265, H.264
• Video Bit Rate32 Kbps to 16 Mbps

• Image
• Max. Resolution1920 × 1200
• Image Settings

  Saturation: 0 to 100

  Brightness: 0 to 100

  Contrast: 0 to 100

  Gain: 0 to 100

  3D DNR: Off, Normal and Expert modes are selectable.

  White balance: White Balance 1 and White Balance 2 are selectable.

• Image FormatJPEG
• Frame Rate25 fps(1920 × 1200)

• Network
• Network StorageTF
• ProtocolsTCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP Upload Pictures
• SecurityUser Authentication, Heartbeat, NTP
• APIISAPI, SDK

• Interfaces
• Serial Port1 RS-485 Port, 1 RS-232 Port
• Built-In LED2 built-in LEDs
• Audio Output1-ch audio output
• Triggered Input3-ch triggered input, including 1-ch I/O triggered input and 2-ch alarm input
• Relay Output2-ch relay output, support open/close of barrier gates
• Memory Card Slot1 TF card slot, up to 128GB
• Communication Interface1 RJ45 10M/100M/1000M Ethernet port

• General
• Working Temperature-30°C to 70°C (-22°F to 158°F)
• Working Humidity90% or less (non-condensing)
• Power Supply12 VDC, PoE (802.3af)
• Power Consumption12 VDC, 1.0 A, 20 W
• Protection LevelIP67, IK10

• Snapshot
• AnalyticSupport ANPR
• LED ControlSupport automatic light control/time control of LEDs
• Picture FormatJPEG with configurable quality

• Vehicle Recognition
• Vehicle ColorRed, yellow(including orange), green, blue, purple, brown, white, grey(including silvery), black
• Vehicle BrandHyundai, Toyota, Kia, Honda, Volkswagen, Benz, Nissan, Ford, ISUZU, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, Hino, Peugeot, Ssang Yong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, UD Trucks, Subaru, IVECO, MINI, Jeep, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, SAIC Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Mercury, Joylong, Geely, Cadillac, Jinbei, Ankai, Haima, Foton, King Long, Dongfeng, Emgrand
• Country/Region Supported By ANPR

  European and Russian-Speaking Regions:

  Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, United Kingdom, Ireland, Germany, Italy, Austria, Israel, Ukraine, Kyrgyzstan, and Russian Federation

• ANPR Recognition Accuracy (Under Recommended Installation And Lighting Conditions)

  Capture rate > 98%

  Vehicle moving direction recognition accuracy > 96%

  Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)

  European and Russian-Speaking Regions:

  LPR accuracy > 98%

  Country/Region recognition accuracy > 98%

• Vehicle TypeCar (including SUV, MPV, Pickup)/truck/bus/van
