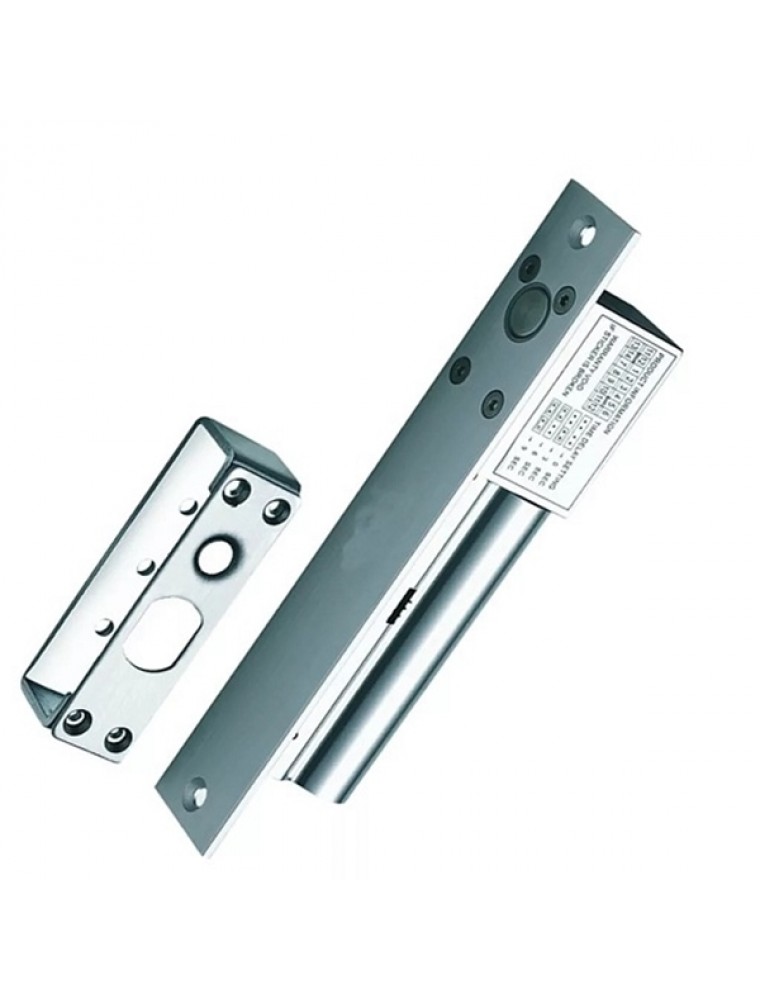

Value Series Bolt Electric Lock

Electric Bolt, 205×34×42mm (8.1×1.3×1.7"), 12VDC, ≤1.2A (Startup Current), 0.2A (Standby)

Auto-locking if induction module is detected

Suitable for wooden door, glass door, metal door

Equipped with internal voltage dependent resistor (MOV)

Signal output of door lock status (NO\NC\COM)

Abrasion-proof materials

Shell is made of aldural and is hard anodizing electroplated.

• General
• Power Supply12VDC; ≤1.2A (Startup Current) 0.2A (Standby)
• Working Temperature-10°C~+55°C (14°F~131°F)
• Working Humidity0~95% (Relative Humidity)
• DimensionsDimension of Lock Body (L×W×H): 205×34×42mm (8.1×1.3×1.7")
• 0.74kg
• MaterialShell: Hard Anodizing Electroplating Operated
• Signal OutputDry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/No, NC Output: Locking; NO Output: Unlocking;
• Delay Duration0/3/6/9s Optional

• Magnetic Lock/General
• Unlock MethodCurrent Interruption
• Surface Temperature≤ Ambient Temperature +10°C (50°F)
• Suitable DoorWooden Door, Glass Door, and Metal Door
