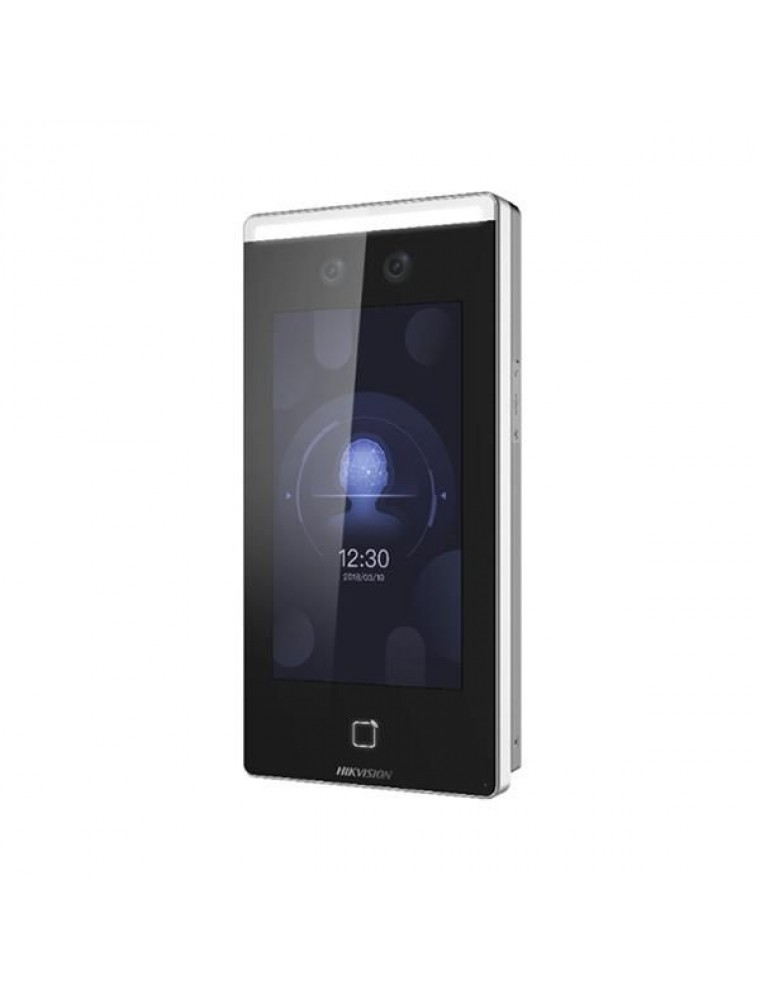

Pro Face Access Terminal

Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed

Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid

7-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in Mifare card reading module

Face recognition distance (without face mask): 0.3 m to 3 m, Duration ＜ 0.2 s/User, Accuracy rate ≥ 99%

Max.6000 faces, Max.6000 cards

Two-way audio with client software, indoor station, and mainstation

Supports TCP/IP

Configuration via the web client

Supports ISAPI and ISUP5.0 protocol

IP65

• System
• Operation SystemLinux

• Display
• Dimensions7-inch
• TypeLCD
• Operation MethodCapacitive touch screen

• Video
• FOVHFOV= 46°；VFOV=87°
• Pixel2 MP
• Lens2

• Audio
• Tone QualityNoise suppression and echo cancellation

• Network
• Wired Network10 M/100 M/1000 M self-adaptive

• Interface
• Network Interface1
• RS-4851
• Wiegand1
• Lock Output1
• Exit Button1
• Door Contact Input1
• IO Input2
• IO Output1
• Power Interface2-pin
• TAMPER1
• USB2

• Capacity
• Card Capacity6000
• Face Capacity6000
• Event Capacity50,000

• Authentication
• Card TypeMifare 1 card
• Card Reading Frequency13.56MHz
• Card Reading Distance0 to 5 cm
• Face Recognition Duration＜ 0.2 s per person
• Face Recognition Accuracy Rate≥ 99%
• Face Recognition Distance0.3 to 3 m (Without face mask)

• Function
• QR Code RecognitionSupport
• Face Anti-SpoofingSupport
• AdvertisementSupport
• Audio PromptSupport
• Time SynchronizationSupport

• General
• Power Supply Method2-pin connecter
• Power Supply12 VDC/2 A
• Working Temperature-30 ℃ to 60 ℃ (-22 °F to 140 °F)
• Working Humidity10 to 90％ (No condensing)
• Dimensions239 mm × 116.5 mm × 33 mm (9.4" × 4.6" × 1.3")
• Protective LevelIP65
• InstallationSurface
• LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
• PlatformHik-ProConnect and HikCentral Professional
